AIR-C24 - Іnstallation speaker
With a small visual footprint, the AIR-C24 is a high-performing system with two 4” woofers and an HF driver on a rotatable horn. It is compatible with horizontal and vertical adjustable mountings and is available in 8 Ohm for ease of parallel usage.
Product description:
Іnstallation speaker
Main features:
• 100 W nominal power
• 2x 4”, 1" VC LF drivers
• 123 dB Max SPL
• VESA 50 x 50, Safety mounting point

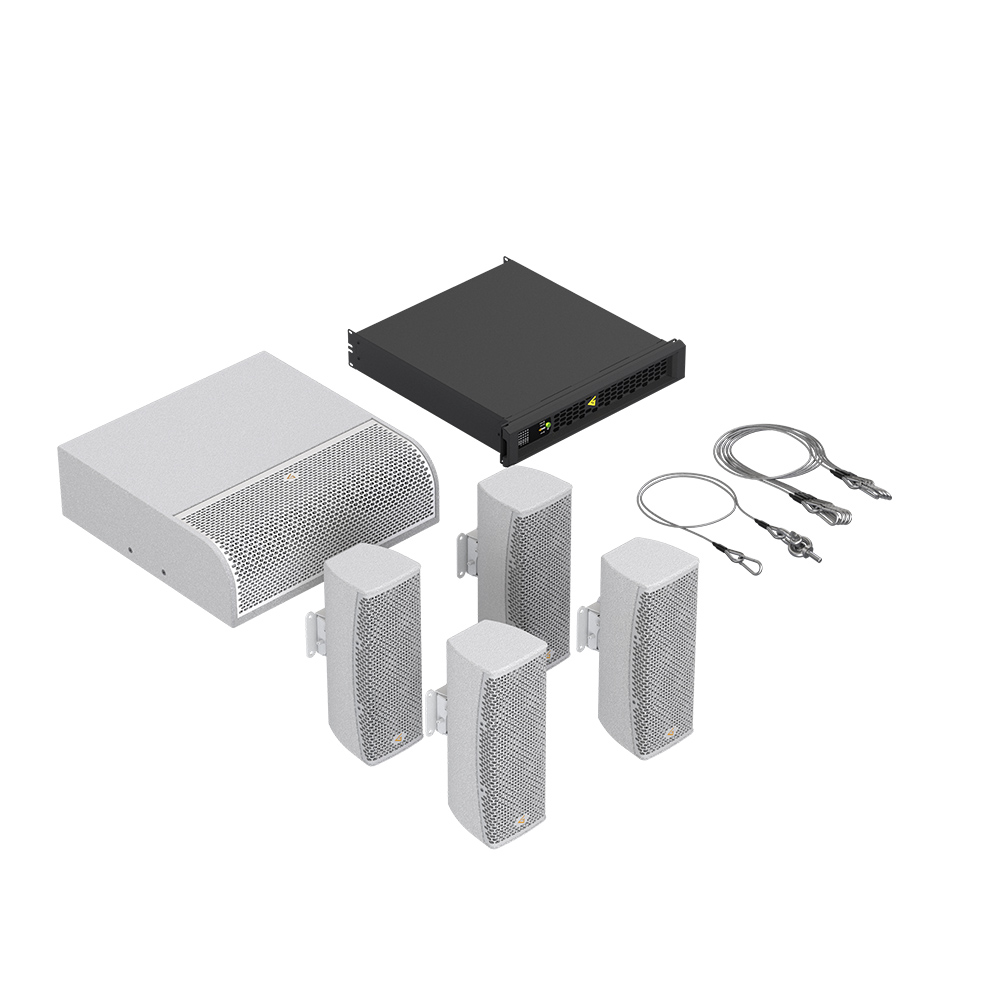

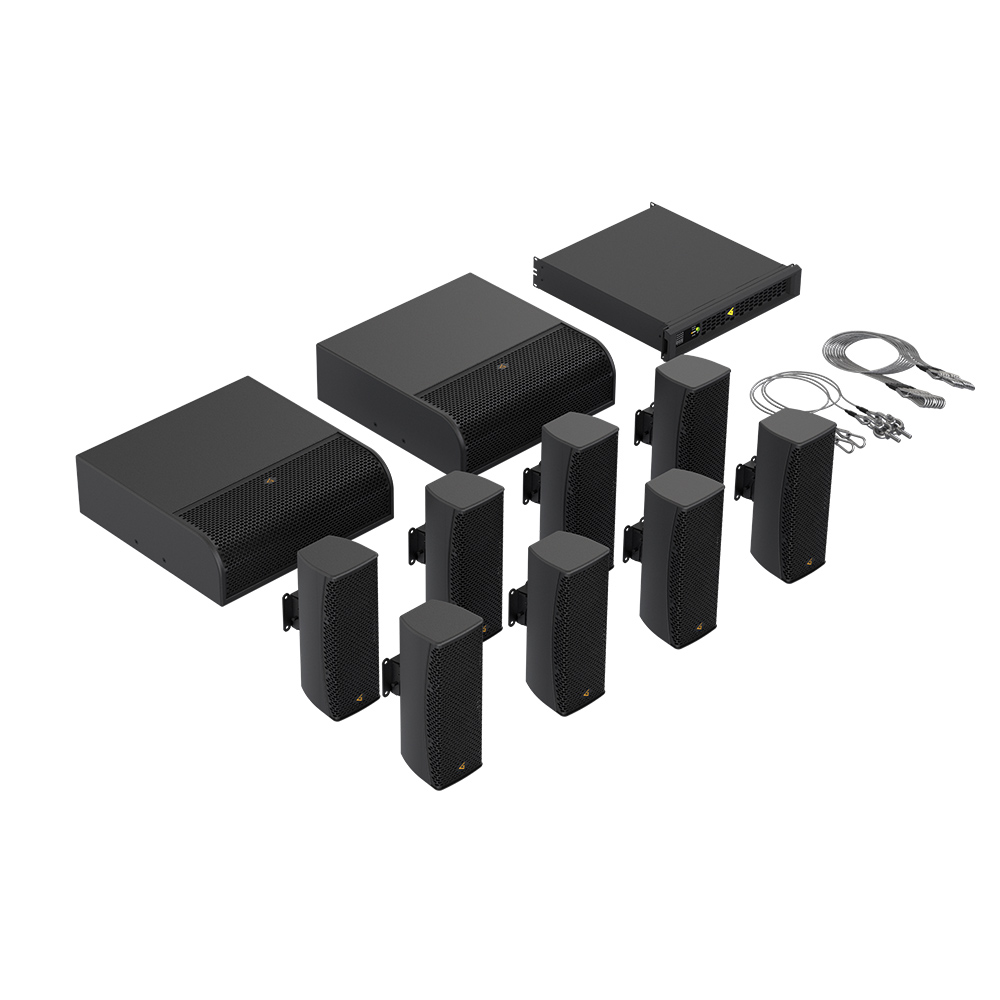

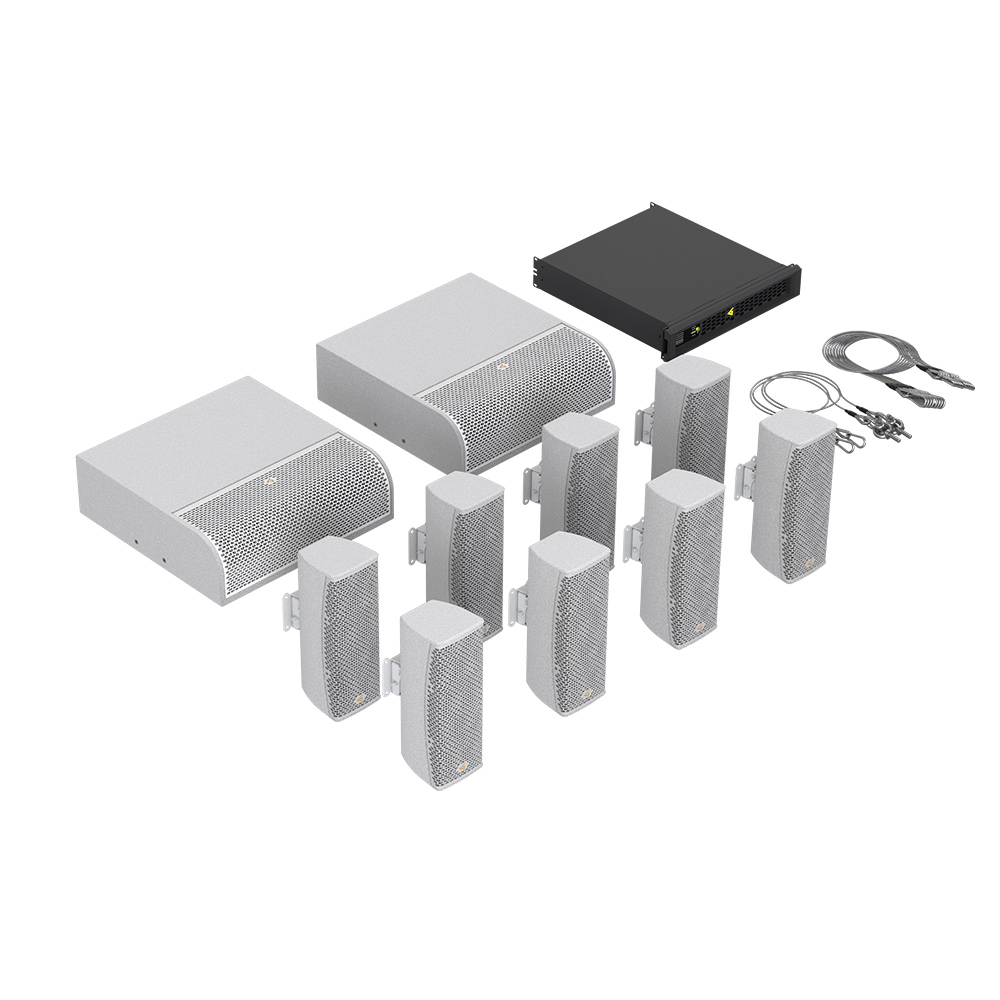

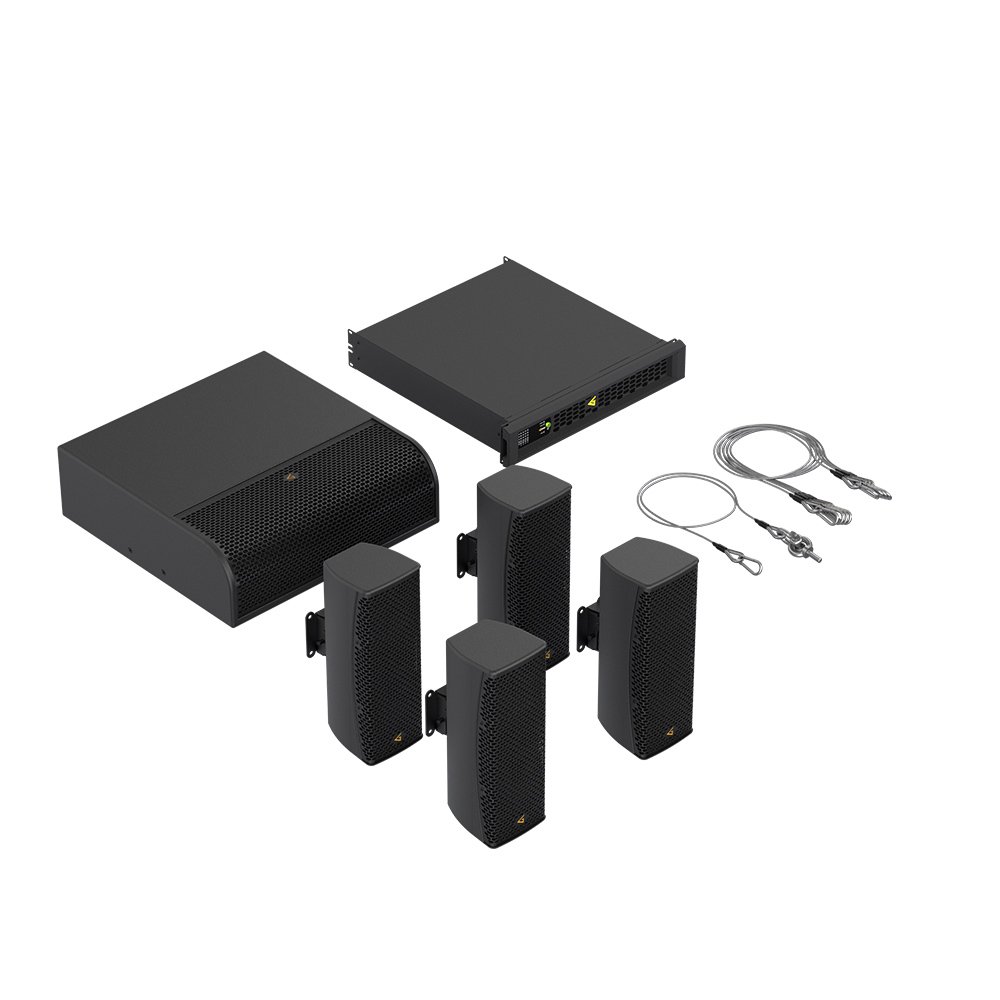

AIR-C24 example sets:
Read more about the application:
MAG Audio AIR-C Series: install, mounting & safety solutions (VIDEO)
MAG Audio AIR-C — a new benchmark for installation acoustics
MAG Audio AIR-C – when sound helps the blind to experience the world
"Culture of Leisure" transformed its Summer Terrace with MAG Audio Air-C
AIR-C series at the "INCH" restaurant
Karaoke room in the Premier Palace
AIR-C for the Christian Social Center "Revival"
Panorama Lounge 12 – MAG Audio Reaches New Heights
GIRAFA restaurant lounge: where style meets premium sound
DOCK7 — Restaurant Brewery in Bratislava, Slovakia
When Prestige Demands Perfection: MAG Audio at Mountain Residence Bukovel
| Main | |
|---|---|
| Type | Passive installation speaker |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 85 - 20000 Hz |
| Max SPL 1 | 123 dB |
| Sensitivity (1W/1m) | 91 dB |
| LF Driver | 2x 4”, 1" VC |
| HF Driver | 1” carbon fiber diaphragm, 1” VC, ND magnet |
| Nominal Coverage Angle (Horizontal × Vertical) | 100° x 70°, rotatable horn |
| Impedance | 8 Ohm |
| Nominal power 2 | 100 W |
| Connectors | Phoenix |
| Connections and physical data | |
| Dimensions (W x H x D) | 385 x 134 x 146 mm; 15,16” x 5,28” x 5,75” |
| Net weight | 4,4 kg; 9,7 lbs |
| Shipping weight | 5,2 kg; 11,5 lbs |
| Mounting | VESA 50 x 50; Safety mounting point |
| Weather protection | IP54 rated |
| Enclosure material | Polycomp©, wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
1 pink noise, filtered according to AES 2 - 2012, crest factor 12 dB
2 based on transducer power measured according to AES 2 - 2012
