AIR-C6 - Іnstallation speaker
Packing the powerful punch, AIR-C6 is based on a 6,5” woofer and an HF driver on a rotatable horn. It is compatible with horizontal and vertical adjustable mountings and is available in 8 and 16 Ohm versions for optimal wiring and amplifier connection.
Product description:
Іnstallation speaker
Main features:
• 150 W nominal power
• 6,5”, 1,75" VC LF driver
• 125 dB Max SPL
• VESA 75 x 75, Safety mounting point

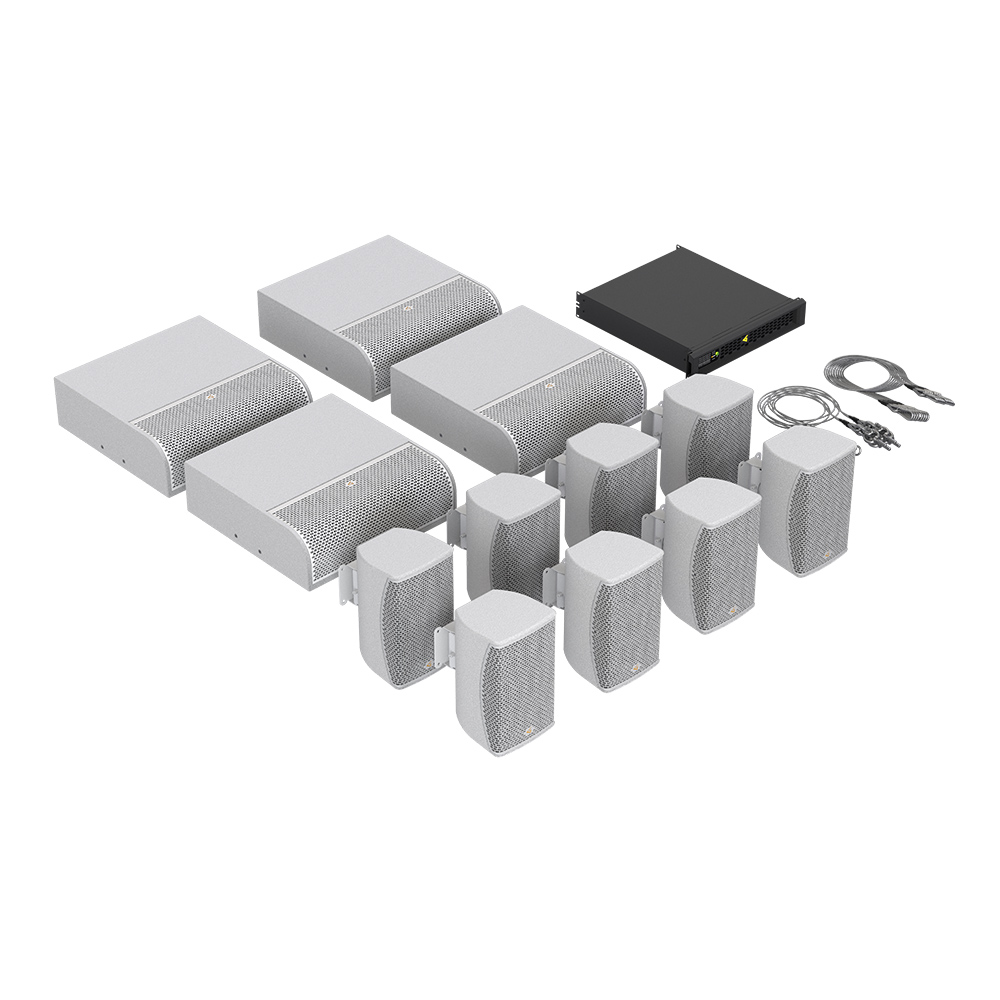

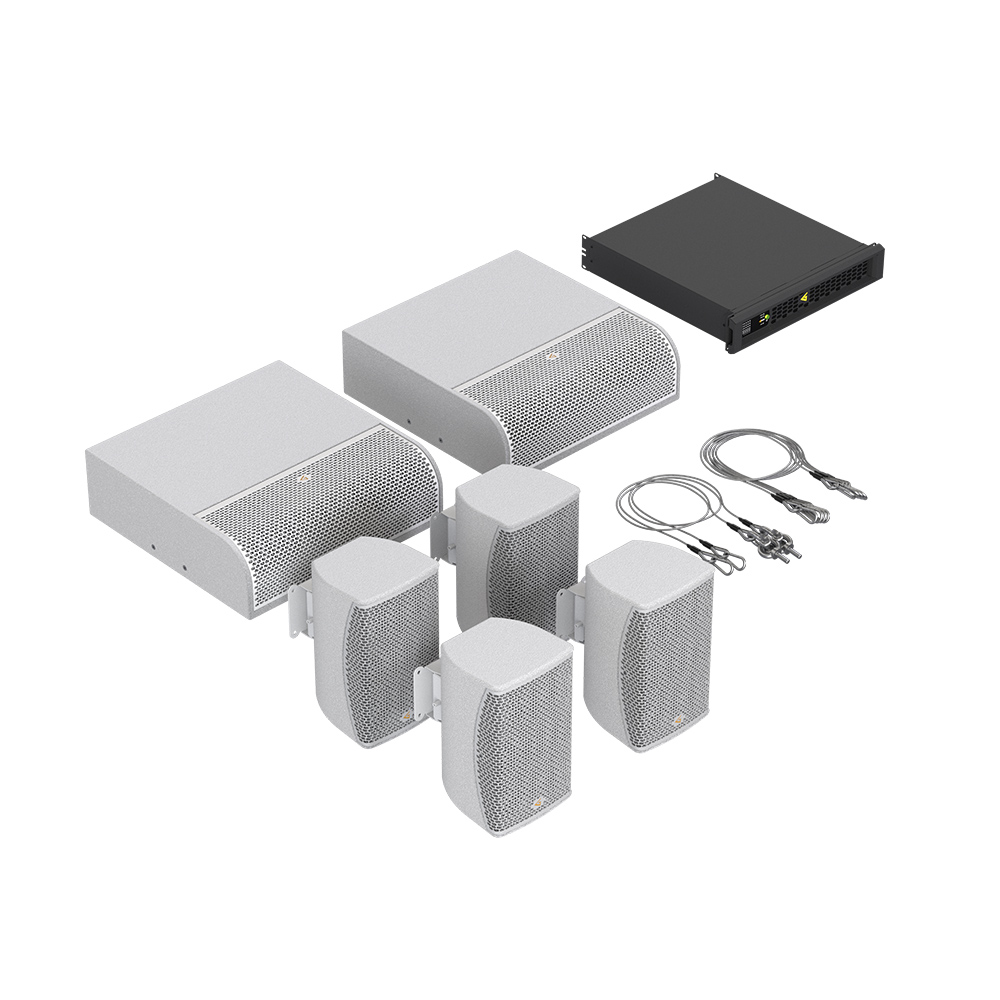

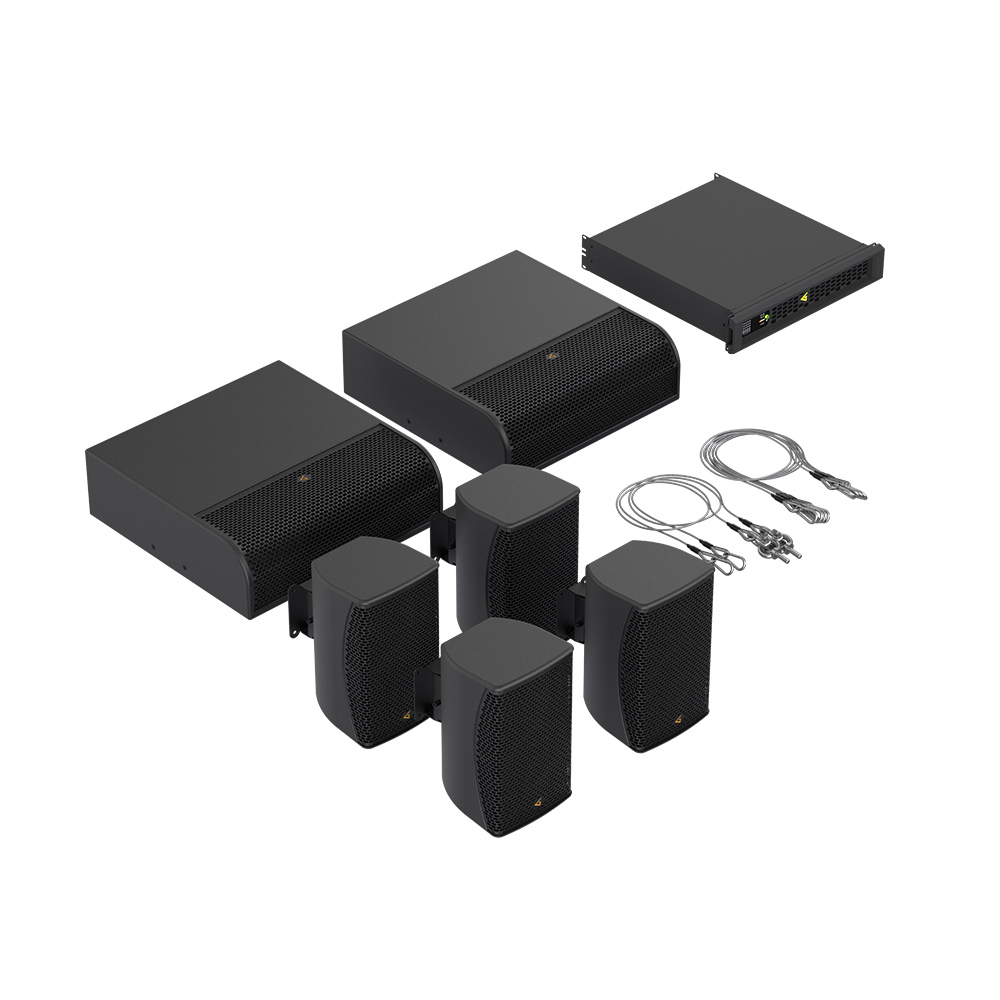

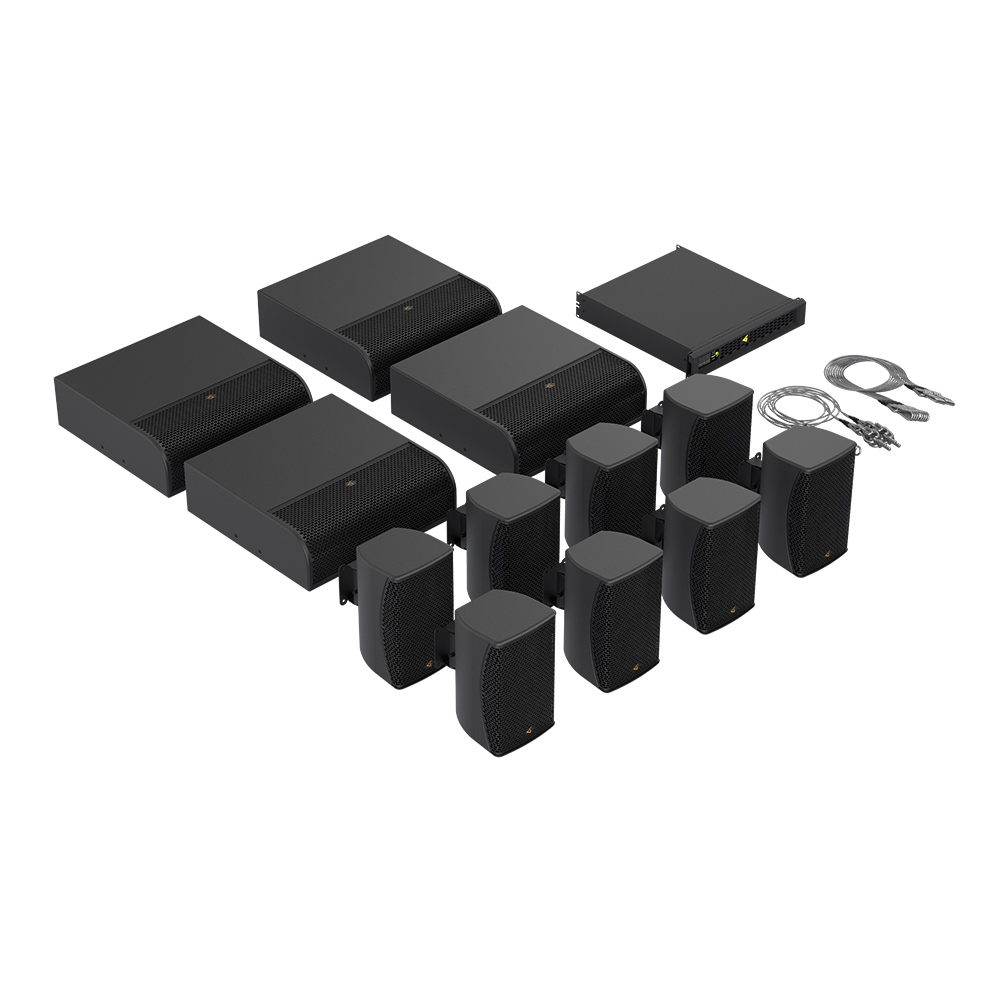

AIR-C6 example sets:
Read more about the application:
MAG Audio AIR-C Series: install, mounting & safety solutions (VIDEO)
MAG Audio AIR-C — a new benchmark for installation acoustics
MAG Audio AIR-C – when sound helps the blind to experience the world
"Culture of Leisure" transformed its Summer Terrace with MAG Audio Air-C
AIR-C series at the "INCH" restaurant
Karaoke room in the Premier Palace
AIR-C for the Christian Social Center "Revival"
Panorama Lounge 12 – MAG Audio Reaches New Heights
GIRAFA restaurant lounge: where style meets premium sound
DOCK7 — Restaurant Brewery in Bratislava, Slovakia
When Prestige Demands Perfection: MAG Audio at Mountain Residence Bukovel
| Main | |
|---|---|
| Type | Passive installation speaker |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 80 - 20000 Hz |
| Max SPL 1 | 125 dB |
| Sensitivity (1W/1m) | 91 dB |
| LF Driver | 6,5”, 1,75" VC |
| HF Driver | 0,75” throat, 1,35” VC |
| Nominal Coverage Angle H × V | 90° x 60°, rotatable horn |
| Impedance | 8 Ohm (AIR-C6-8); 16 Ohm (AIR-C6-16) |
| Nominal power 2 | 150 W |
| Connectors | Phoenix |
| Connections and physical data | |
| Dimensions (W x H x D) | 350 x 200 x 200 mm; 13,78” x 7,87” x 7,87” |
| Net weight | 6,4 kg; 14,1 lbs |
| Shipping weight | 7,2 kg; 15,9 lbs |
| Mounting | VESA 75 x 75; Safety mounting point |
| Weather protection | IP54 rated |
| Enclosure material | Polycomp©, wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
1 pink noise, filtered according to AES 2 - 2012, crest factor 12 dB
2 based on transducer power measured according to AES 2 - 2012
