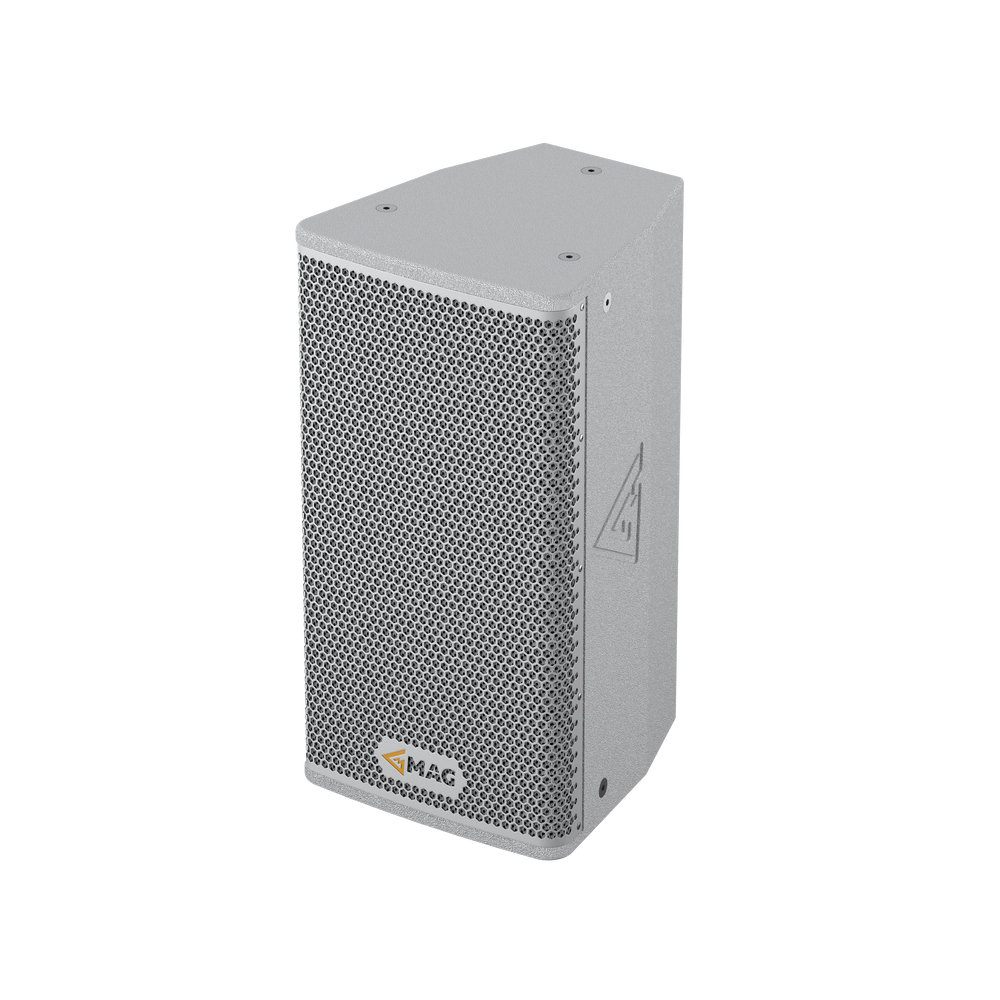

NX 10 IP - Weather-resistant installation speaker
NX 10 IP is a 10’’+1,5’’ passive installation speaker, purpose-made for installations. With specially-designed construction, light weight and compact size, it fits any and all installations, providing considerable power and smooth sonic performance.
Product description:
Weather-resistant installation speaker
Main features:
• 500 W nominal power
• 10” woofer with 3” voice coil
• 1,5” HF driver with 2,8” voice coil
• 133 dB Max SPL
• M10 mounting points
Read more about application:
NX series at Malevich Summer Terrace
NX series from MAG Audio for the Ice Rink in Kramatorsk (Ukraine)
NX series Deployed in the Netherlands’ 100-year-old Theater Podium Zuidhaege
NX 10NX series and Green Technologies: the College of Future Terra Emmen in the Netherlands
| Main | |
|---|---|
| Type | Weather-resistant installation speaker |
| CONECTORS, INPUTS and OUTPUTS | |
| Connectors | Phoenix |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 55 - 19000 Hz |
| Max SPL 1 | 133 dB |
| Sensitivity (1W/1m) | 97 dB |
| LF Driver | 10”, 3" VC |
| HF Driver | 1,5”, 2,8" VC |
| Nominal Coverage Angle (Horizontal × Vertical) | 80 x 70 deg |
| Impedance | 8 Ohm |
| Nominal power 2 | 500 W |
| Connections and physical data | |
| Dimensions (W x H x D) | 319 x 600 x 336 mm |
| Net weight | 21 kg |
| Shipping weight | 23 kg |
| Mounting | M10 mounting points |
| Weather protection | IP54 protection |
| Enclosure material | Plywood; wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
1 pink noise, filtered according to AES 2 - 2012, crest factor 9 dB
2 based on transducer power measured according to AES 2 - 2012
