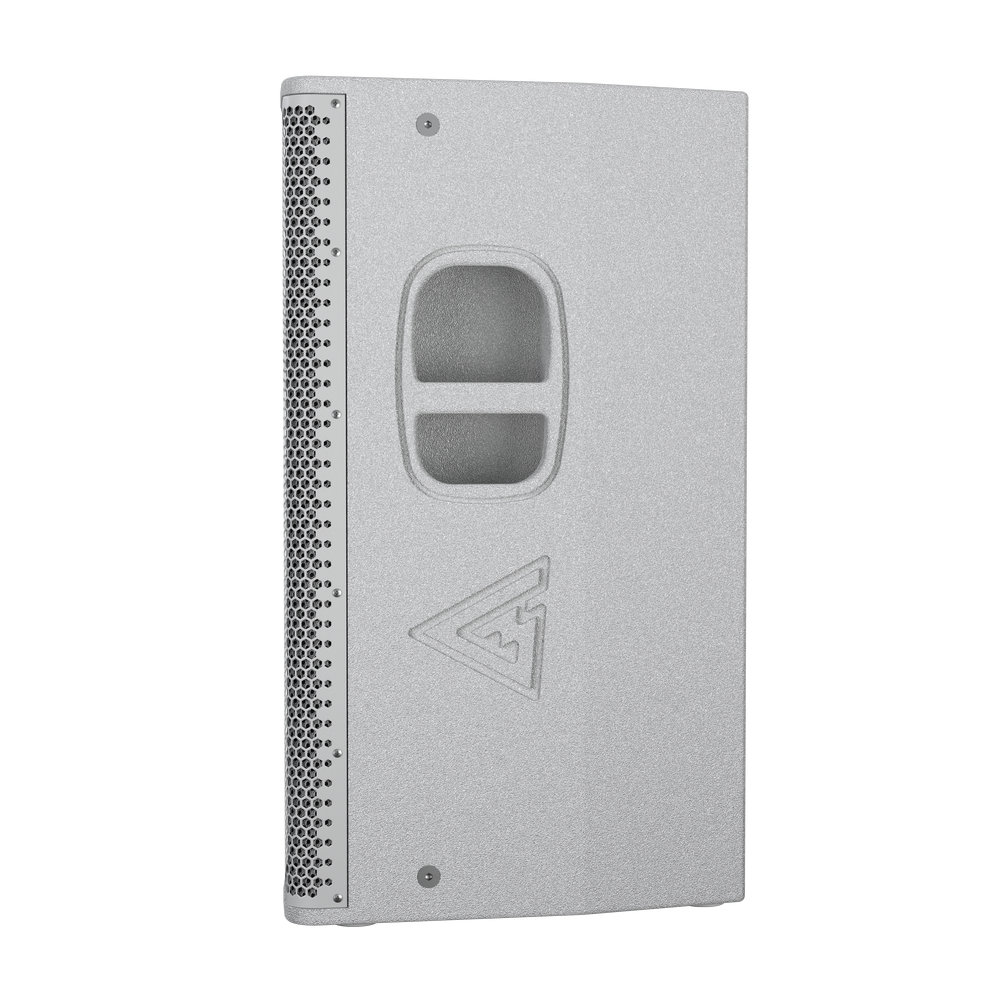

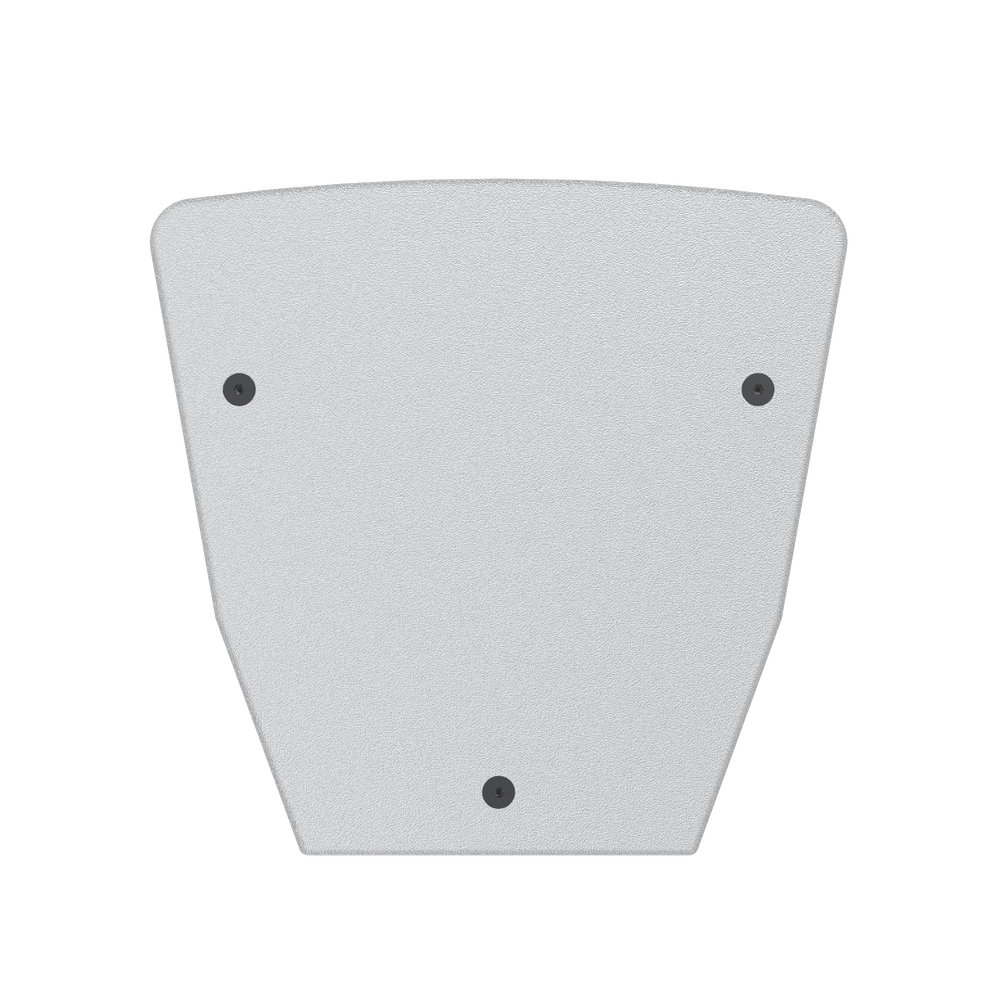

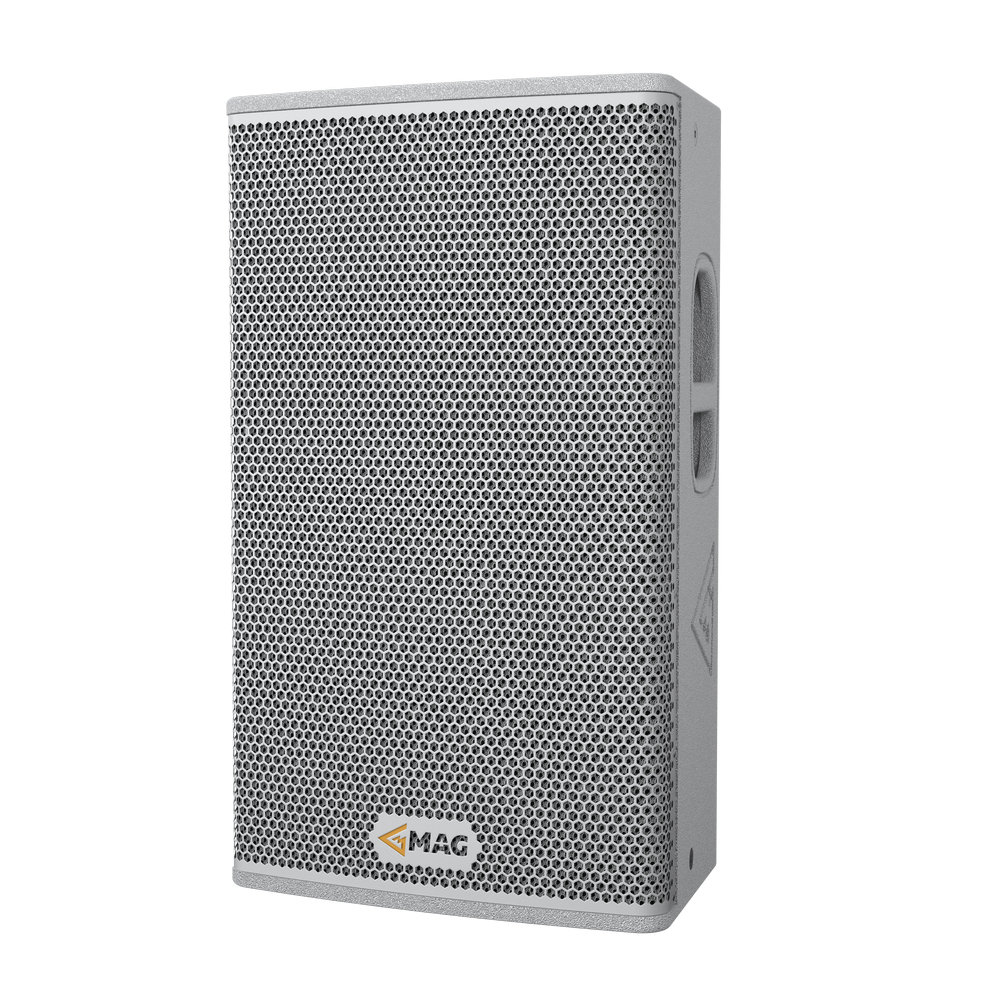

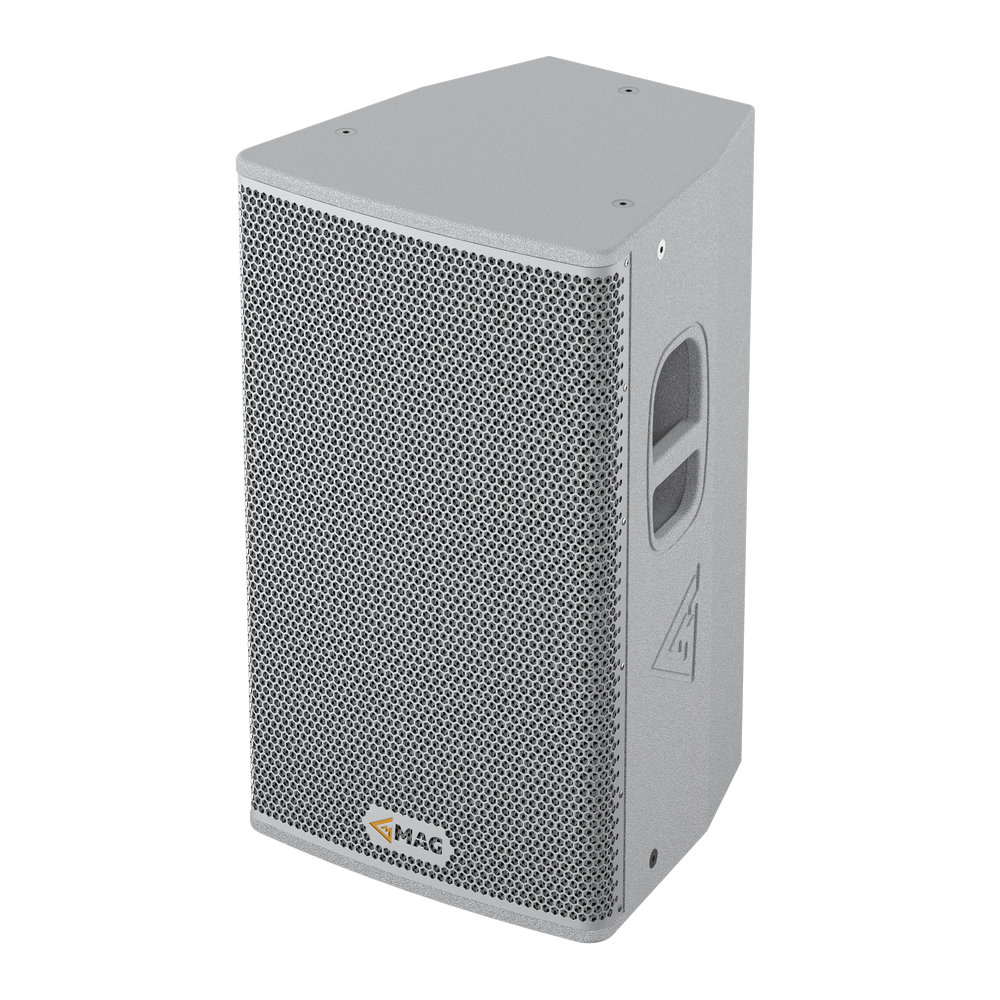

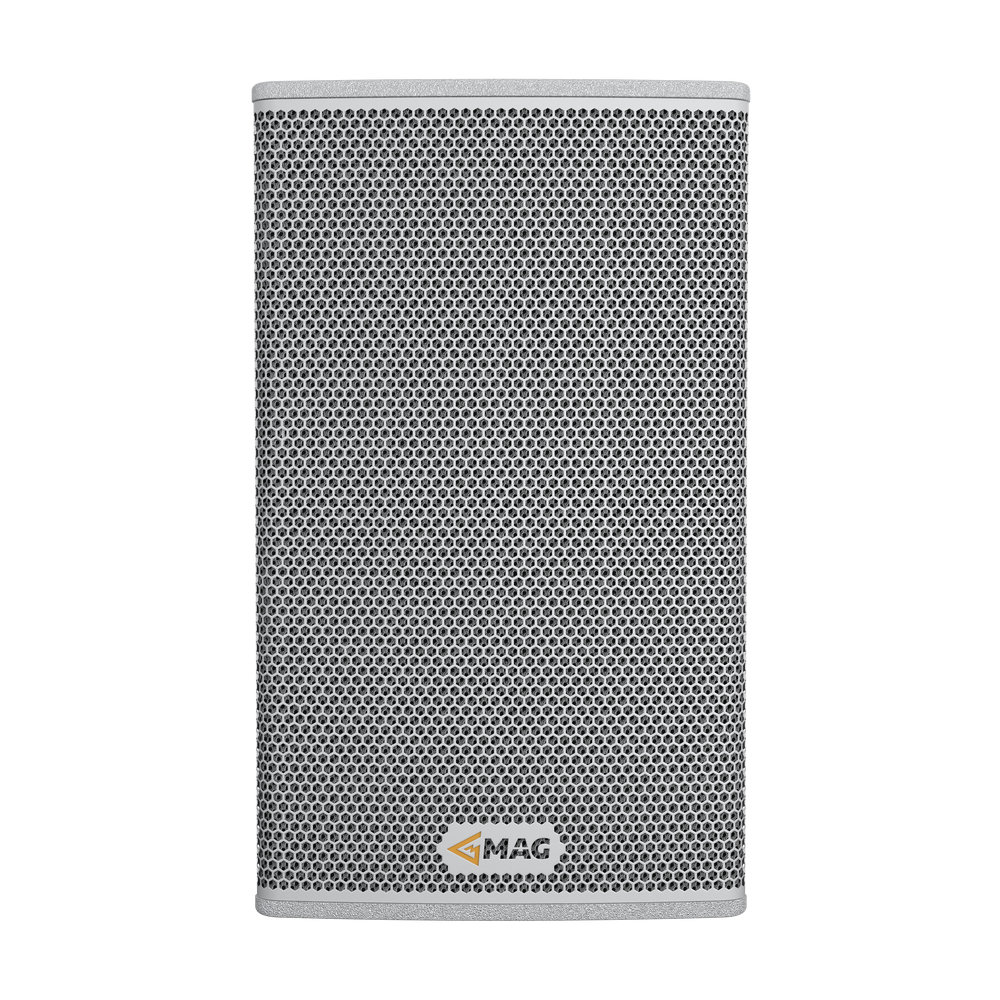

NX 15A - Powered full-range speaker
NX 15A is a powered full-range speaker, based on low distortion high performance 15” neodymium woofer and 1,5” neodymium HF driver. Powerful, lightweight, sonically superior and great looking – NX 15A is the speaker of choice of innovative rental companies, tour sound providers and complete sound reinforcement solution designers.
Product description:
Powered full-range speaker
Main features:
• 900 + 500 W nominal power
• 15” woofer with 3” voice coil
• 1,5” HF driver with 2,8” voice coil
• 135,5 dB Max SPL
• Pole mount adapter, M10 mounting points
Read more about application:
NX series at Malevich Summer Terrace
NX series from MAG Audio for the Ice Rink in Kramatorsk (Ukraine)
NX series Deployed in the Netherlands’ 100-year-old Theater Podium Zuidhaege
NX 10NX series and Green Technologies: the College of Future Terra Emmen in the Netherlands
| Main | |
|---|---|
| Type | Powered full-range speaker |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 45 - 19000 Hz |
| Max SPL (calculated) | 135,5 dB |
| LF Driver | 15”, 3" VC |
| HF Driver | 1,5”, 2,8" VC |
| Nominal Coverage Angle (Horizontal × Vertical) | 80 x 70 deg |
| Amplifier power | 900+500 W |
| Amplifier | Class D, fan cooling, DSP with phase-linear FIR |
| Input sensitivity | 0 dBV (1 V RMS) |
| Connections and physical data | |

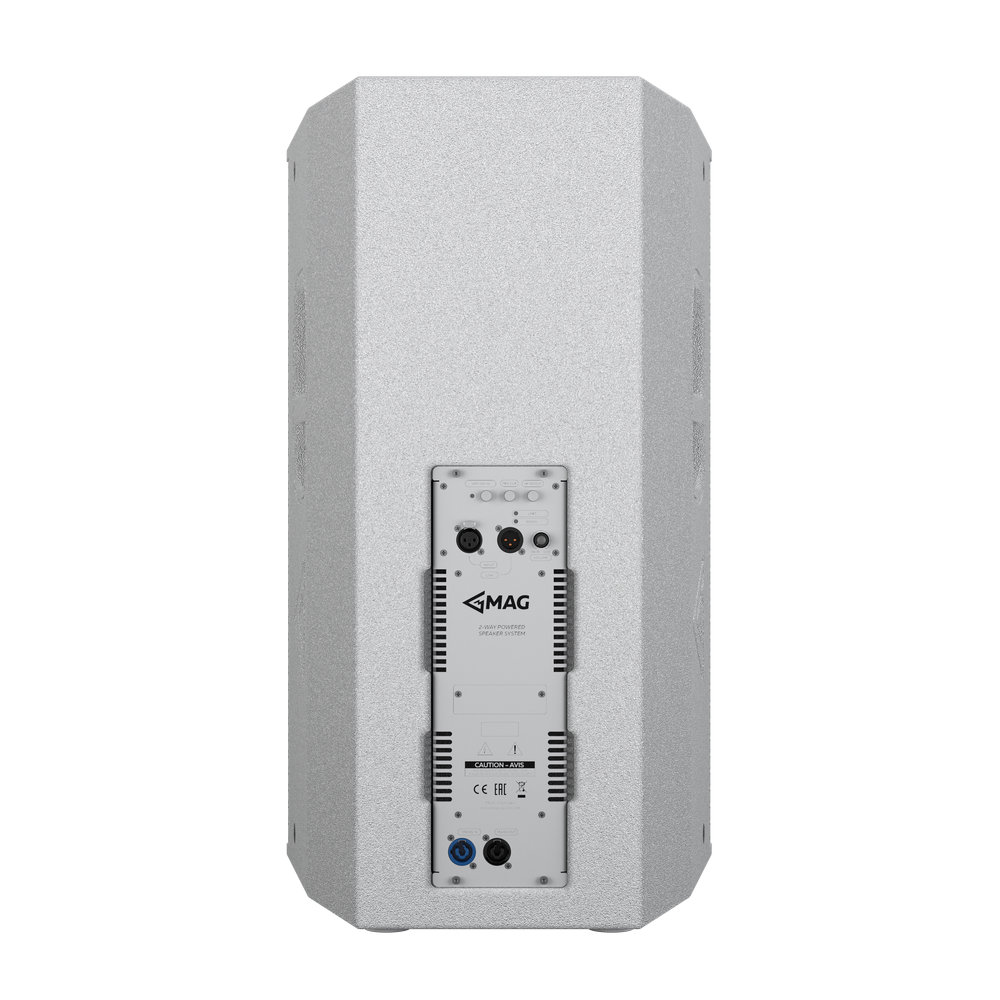

| Connectors | XLR input, XLR output, Powercon mains |
| Dimensions (WxHxD) | 436x735x423 mm |
| Net weight | 29 kg |
| Shipping weight | 31 kg |
| Mounting | 10x M10 mounting points, 35mm pole socket |
| Enclosure material | Plywood; wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
