NX 15 - Passive full-range speaker

NX 15 - Passive full-range speaker
Designed to deliver
High-performance in a compact size
Lightweight cabinets perfect for mobile professionals
Passive and powered versions available
Fitting everywhere
Mounting options including Flytrack and pole mounting

NX 15 is a passive full-range speaker, based on low distortion high performance 15” neodymium woofer and 1,5” neodymium HF driver. Powerful, lightweight, sonically superior and great looking – NX 15 is the speaker of choice of innovative rental companies, tour sound providers and complete sound reinforcement solution designers.

Product description:

Passive full-range speaker

Main features:

• 500W nominal power

• 15” woofer with 3” voice coil

• 1,5” HF driver with 2,8” voice coil

• 134,5 dB Max SPL

• Pole mount adapter, M10 mounting points

Читайте больше про применение:

The Revival of Musical Traditions with MAG NX 15

NX series advances on the fixed installations market

NX series from MAG Audio for the Ice Rink in Kramatorsk (Ukraine)

NX series Deployed in the Netherlands’ 100-year-old Theater Podium Zuidhaege

NX series and Green Technologies: the College of Future Terra Emmen in the Netherlands

MMconcept Сhooses NX series

Type Passive full-range speaker
Acoustical & Electrical data
Frequency response (-10dB) 45 - 19000 Hz
Max SPL 1 134,5 dB
Sensitivity (1W/1m) 98,5 dB
LF Driver 15”, 3" VC
HF Driver 1,5”, 2,8" VC
Nominal Coverage Angle (Horizontal × Vertical) 80 x 70 deg
Impedance 8 Ohm
Nominal power 2 500 W
Connections and physical data

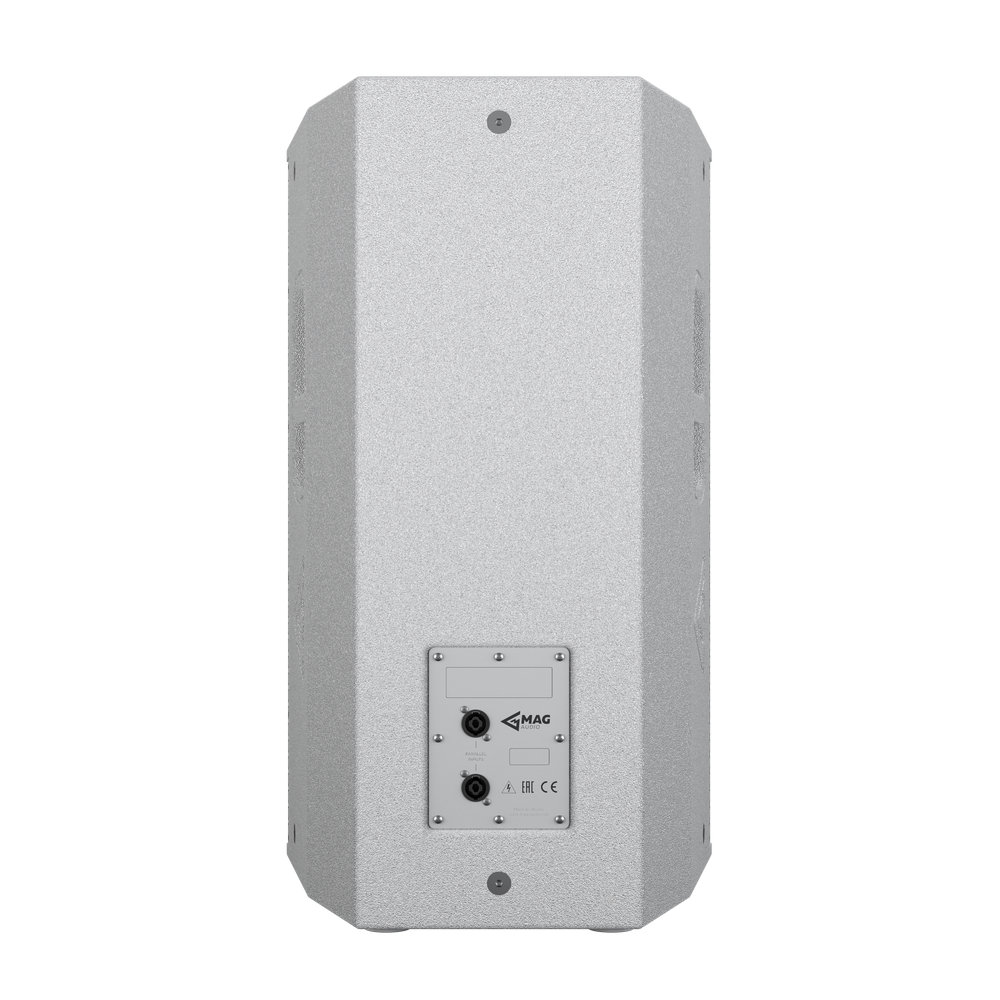

Connectors 2x NeutrikSpeakon
Dimensions (W x H x D) 436x735x423 mm
Net weight 26 kg
Shipping weight 28 kg
Mounting 10x M10 mounting points, 35mm pole socket, carrying handles, plastic feet
Enclosure material Plywood; wear resistant paint
Speaker protection Steel grill, acoustically transparent backing

1 pink noise, filtered according to AES 2 - 2012, crest factor 9 dB

2 based on transducer power measured according to AES 2 - 2012
