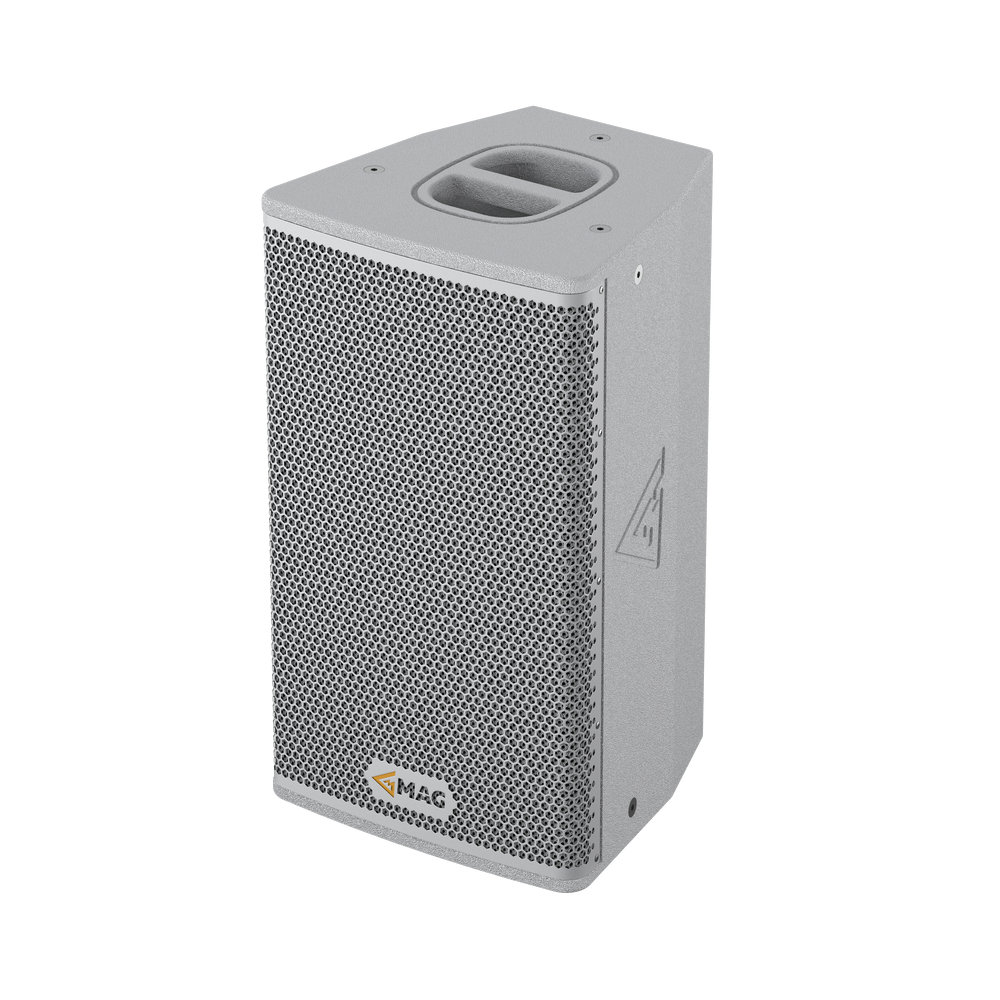

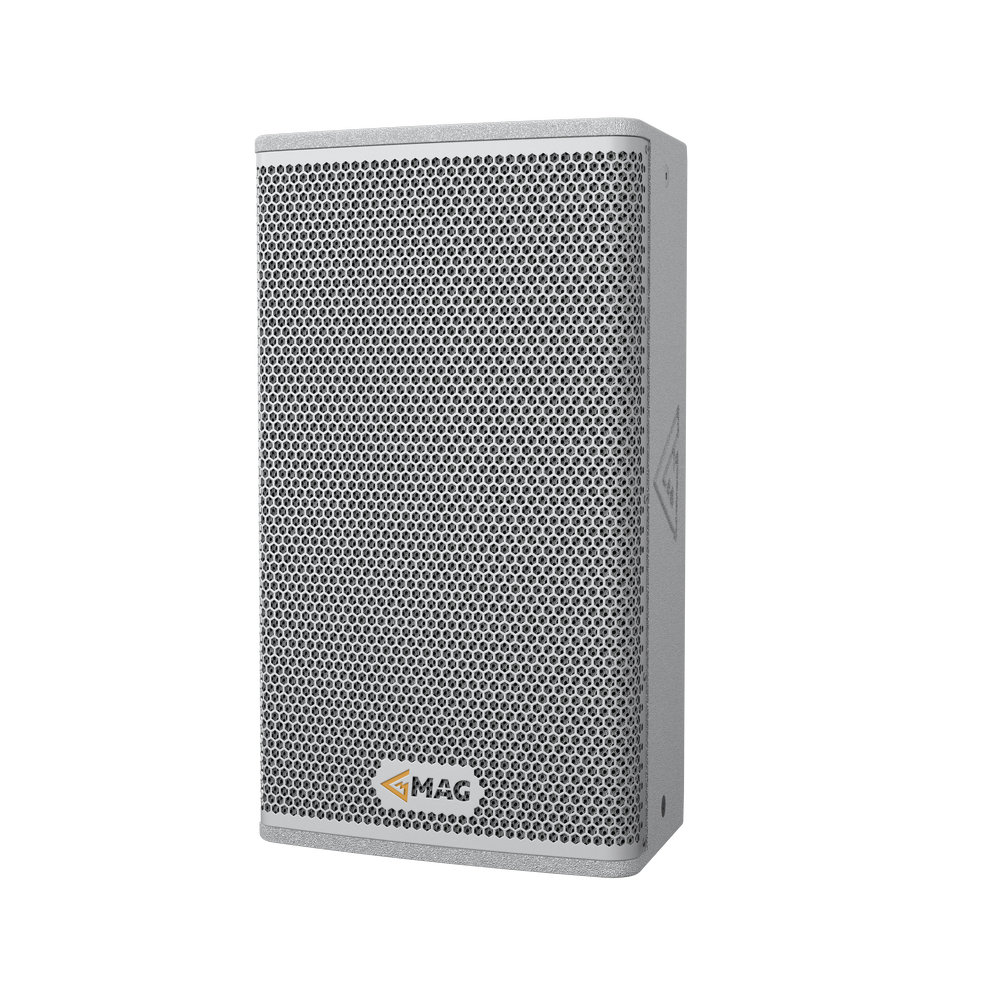

NX 12 - Passive full-range speaker
Extremely versatile, powerful, and compact NX 12 speaker features low distortion 12” neodymium woofer and 1,5” neodymium HF driver. Due to compact dimensions and considerable power output, NX 12 is great speaker for rental, touring, or a complete sound reinforcement solution.
Product Description:
Passive full-range speaker
Main features:
• 500W nominal power
• 12” woofer with 3” voice coil
• 1,5” HF driver with 2,8” voice coil
• 134 dB Max SPL
• Pole mount adapter, M10 mounting points
Read more about the application:
With MAG Audio speakers, Every Inch Matters!
NX series advances on the fixed installations market
NX 12 Loudspeakers Deployed in the Netherlands’ 100-year-old Theater Podium Zuidhaege
NX series and Green Technologies: the College of Future Terra Emmen in the Netherlands
| Main | |
|---|---|
| Type | Passive full-range speaker |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 50 - 19000 Hz |
| Max SPL 1 | 134 dB |
| Sensitivity (1W/1m) | 98 dB |
| LF Driver | 12”, 3" VC |
| HF Driver | 1,5”, 2,8" VC |
| Nominal Coverage Angle (Horizontal × Vertical) | 80 x 70 deg |
| Impedance | 8 Ohm |
| Nominal power 2 | 500 W |

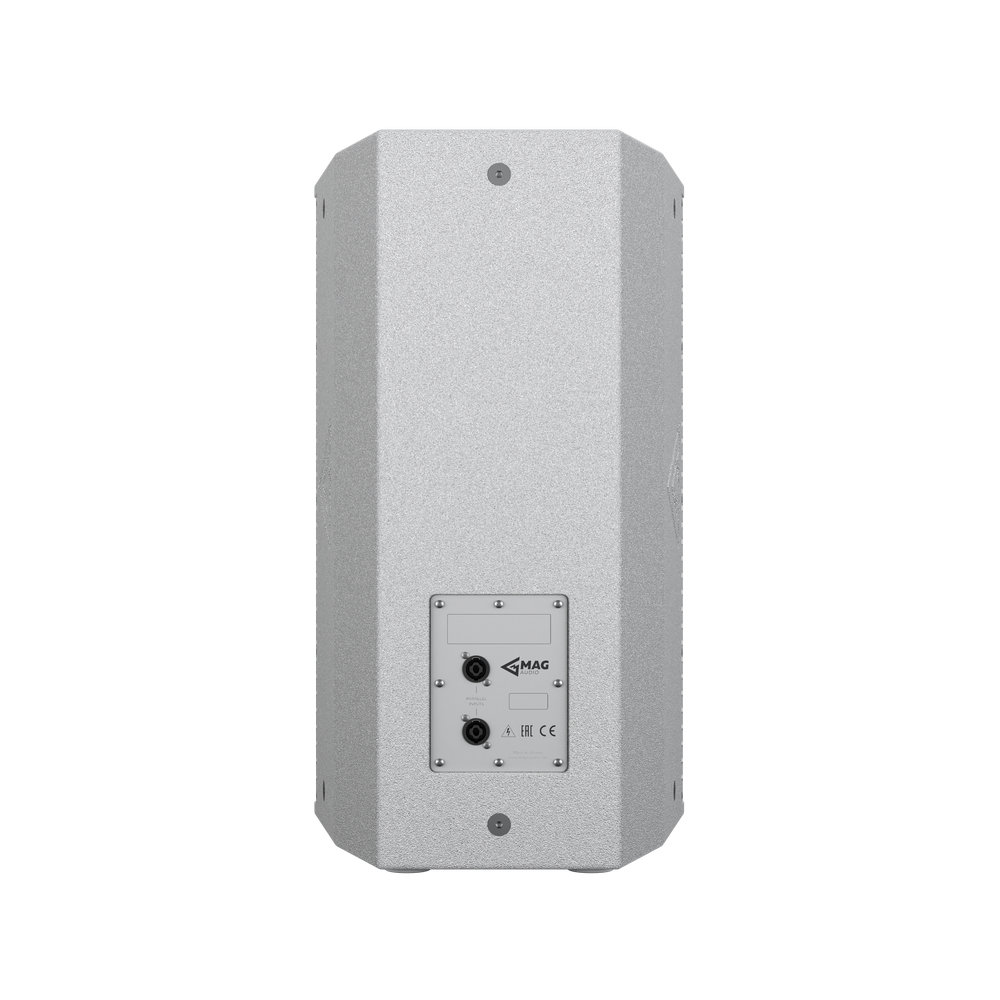

| Connectors | 2 x NeutrikSpeakon |
| Connections and physical data | |
| Dimensions (W x H x D) | 379 x 655 x 367 mm |
| Net weight | 22 kg |
| Shipping weight | 24 kg |

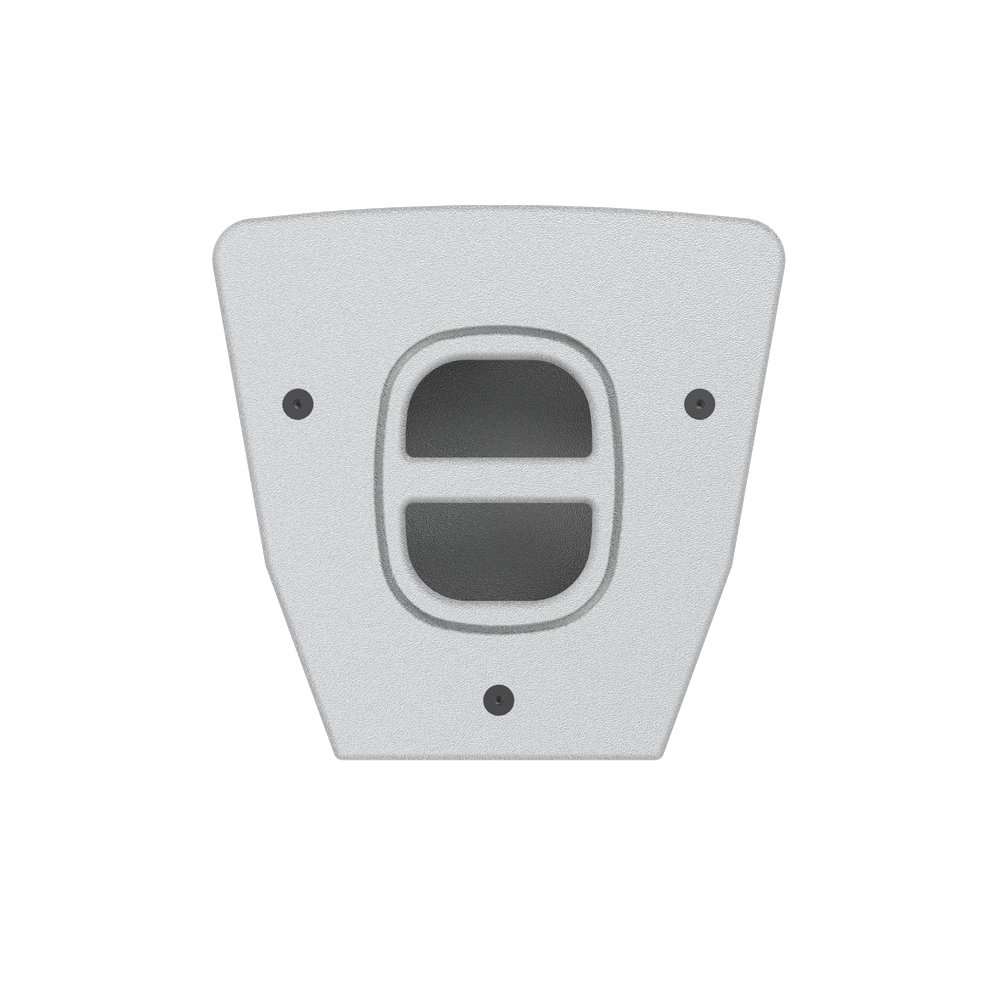

| Mounting | 10 x M10 mounting points, 35 mm pole socket, carrying handles, plastic feet |
| Enclosure material | Plywood; wear resistant paint |

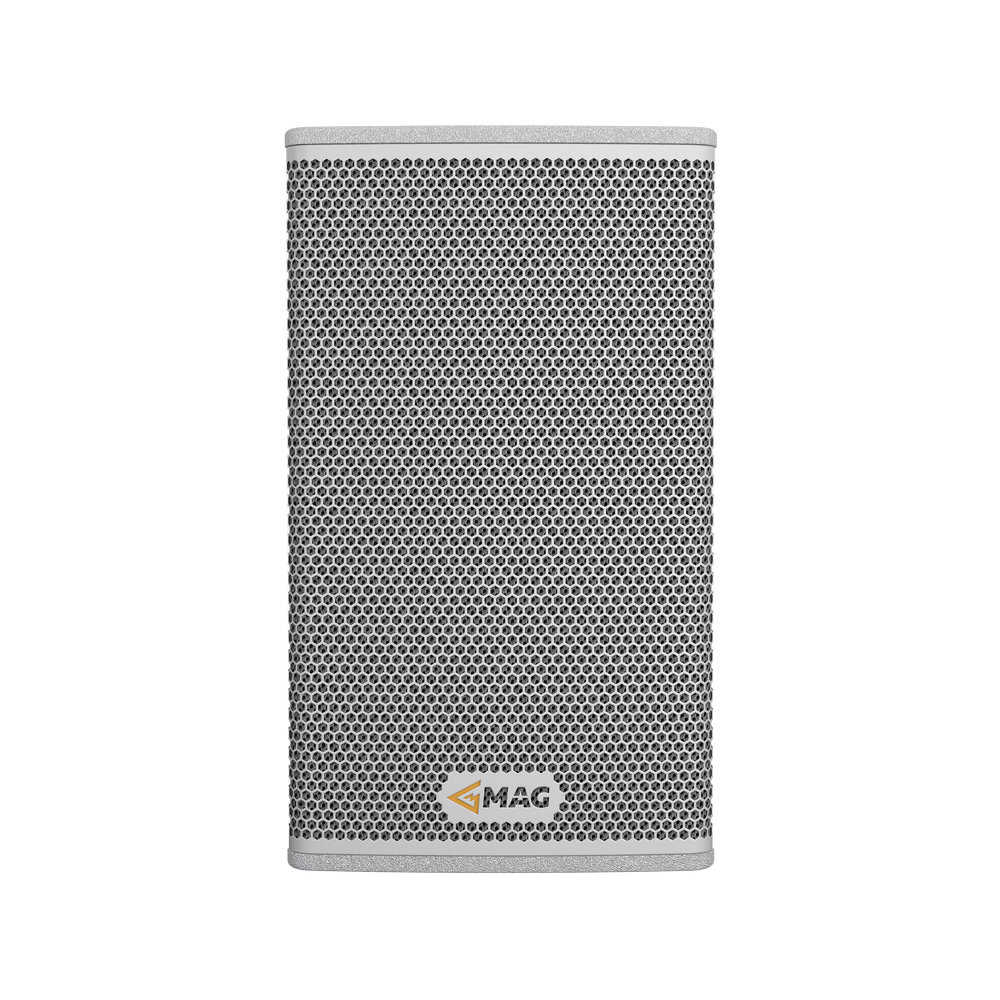

| Speaker protection | Steel grill, acoustically transparent backing |
1 pink noise, filtered according to AES 2 - 2012, crest factor 9 dB
2 based on transducer power measured according to AES 2 - 2012
