NX 12i - Installation full-range speaker

NX 12i - Installation full-range speaker
Designed to deliver
High-performance in a compact size
Variety
Passive and powered versions available
Transportability
Lightweight cabinets perfect for mobile professionals
Fitting everywhere
Mounting options including Flytrack and pole mounting
Indoor & outdoor use
Compact enclosures designed to fit into any interior

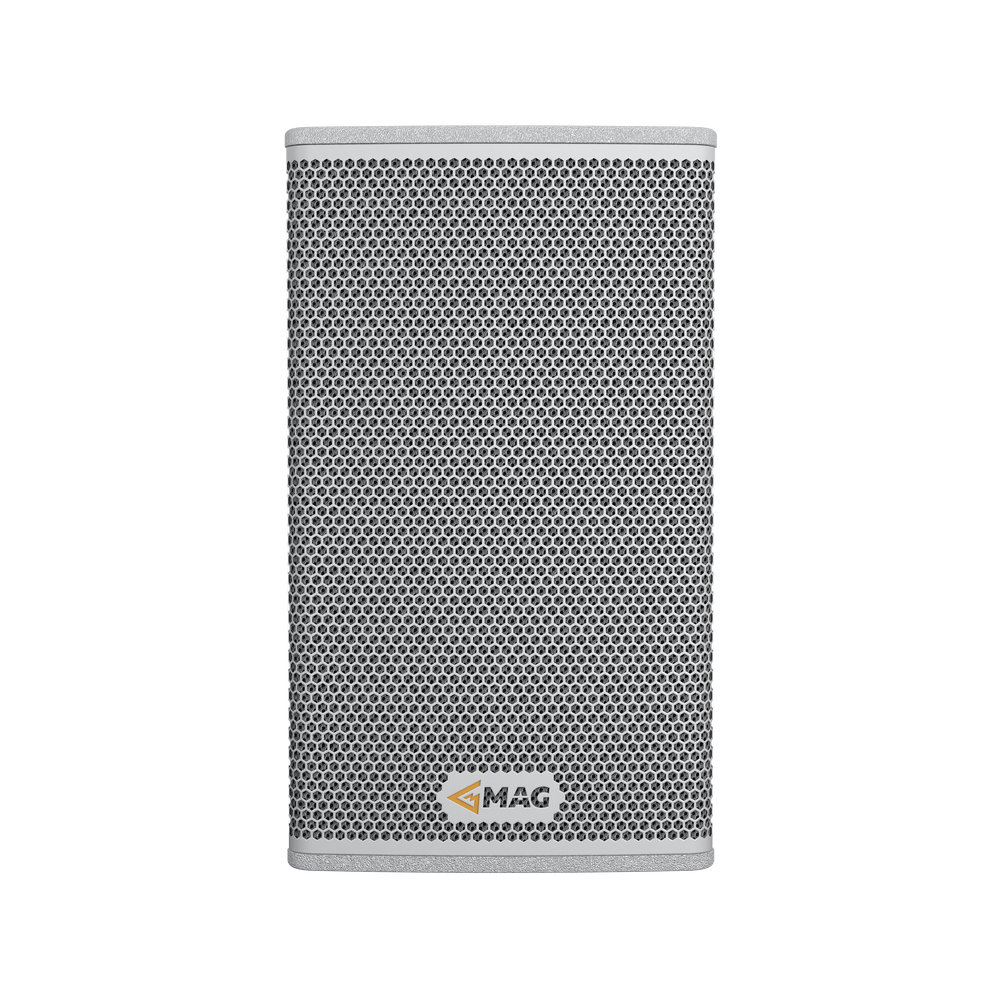

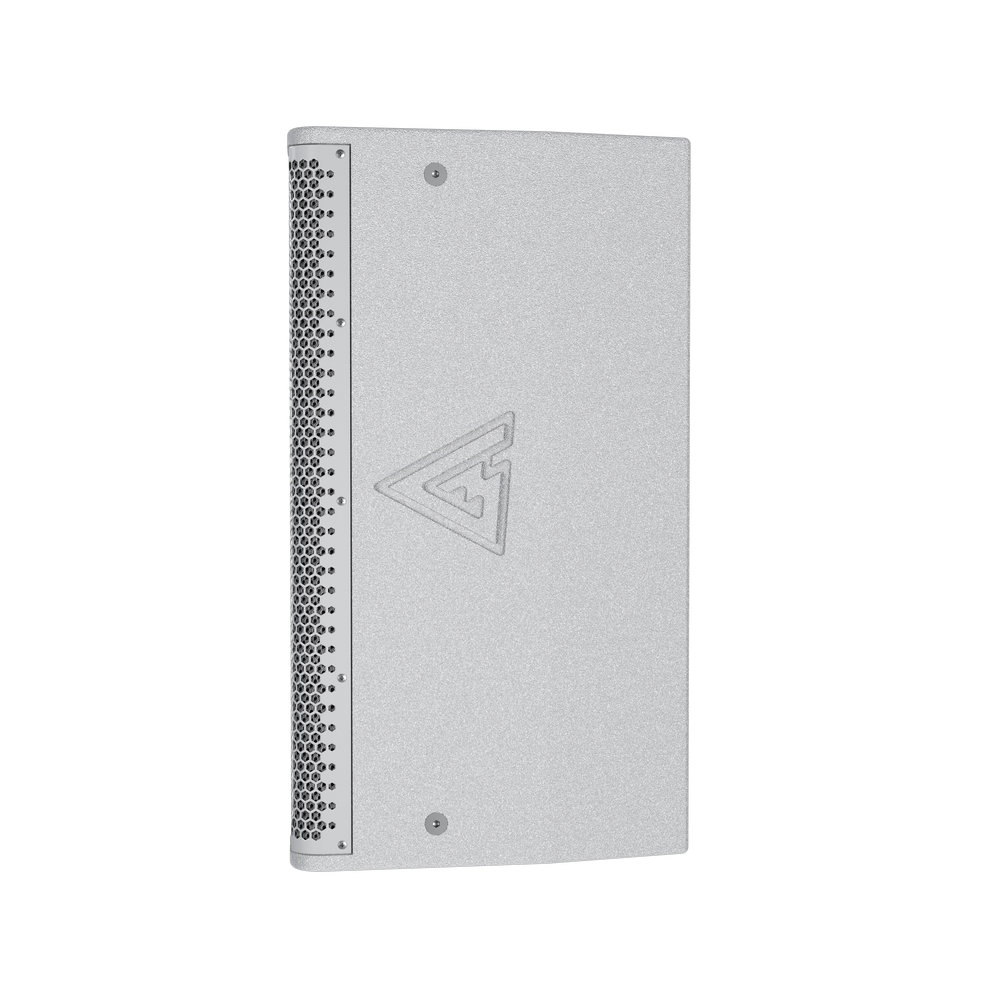

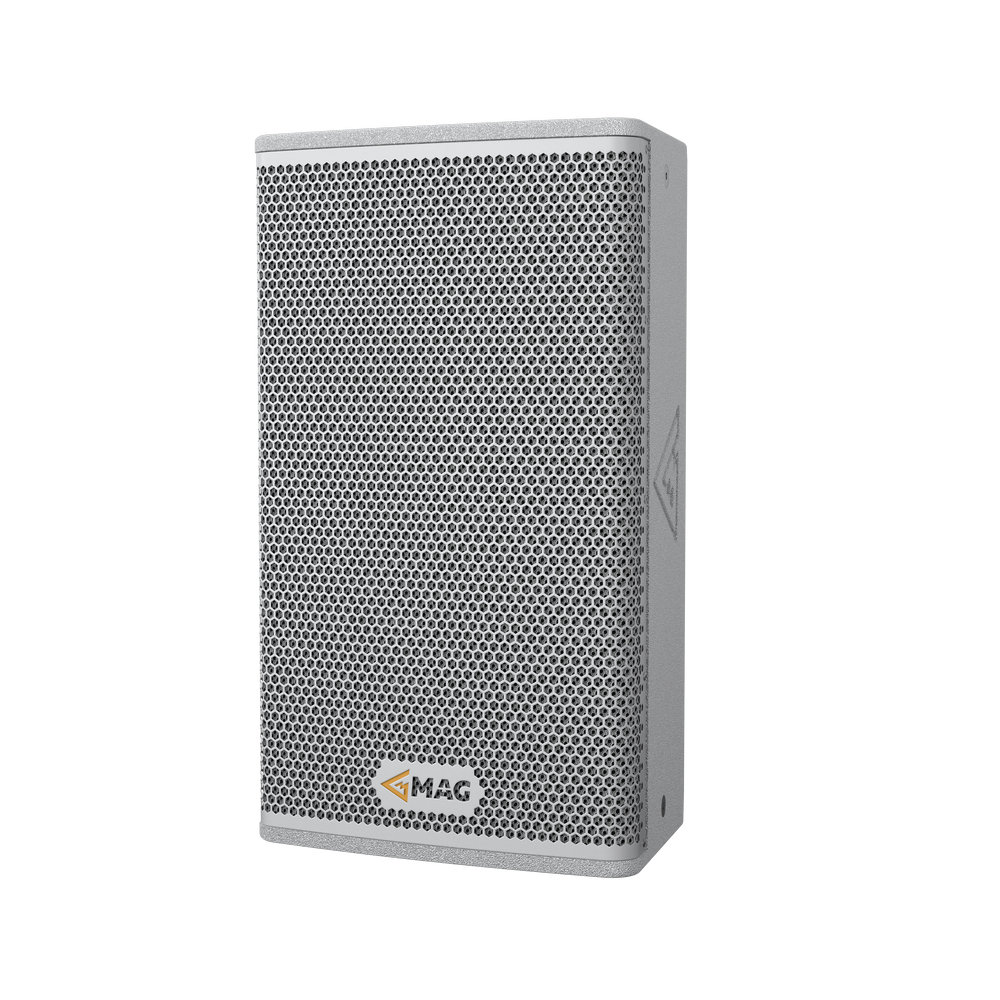

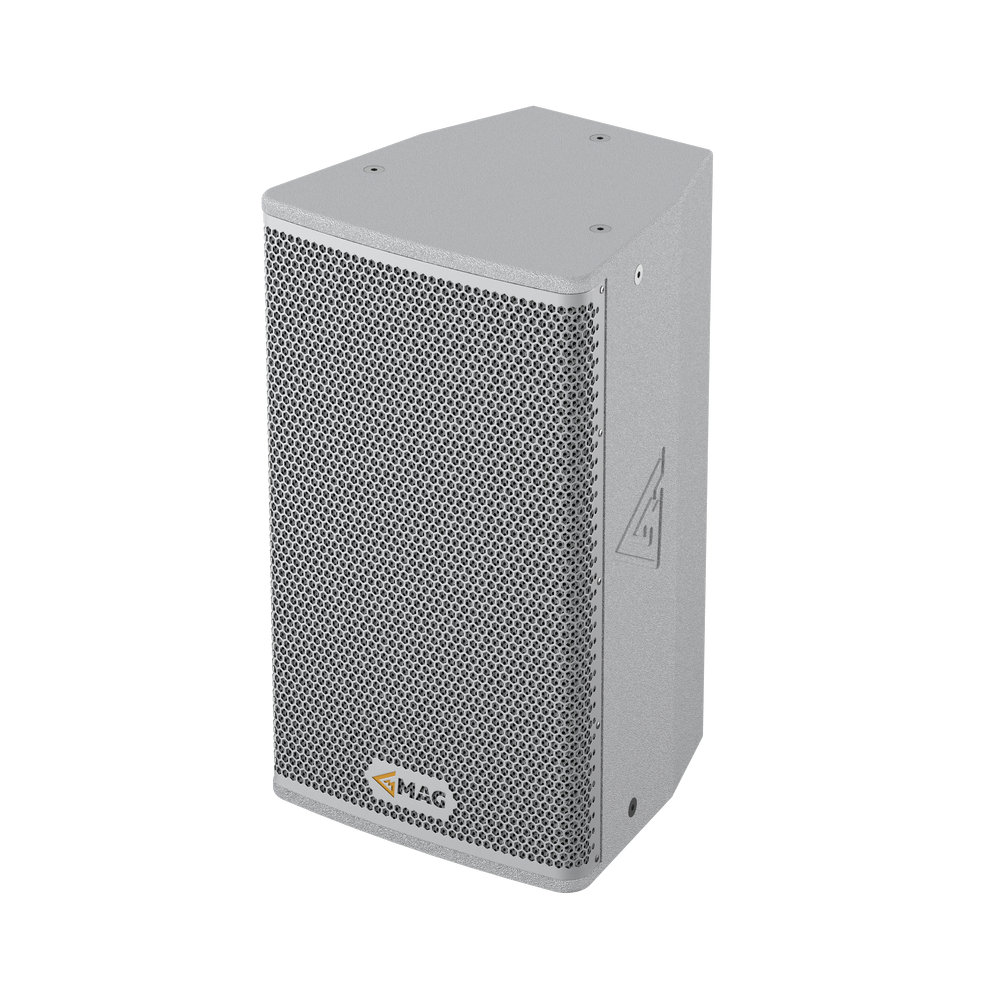

NX 12i is a passive full-range speaker, based on 12’’+1,5’ drivers, purpose-designed for installations. With well-thought-out construction, lightweight and compact size, it provides considerable power and smooth sonic performance, fitting into any and all installations.

Product description:

Installation full-range speaker

Main features:

• 500 W nominal power

• 12” woofer with 3” voice coil

• 1,5” HF driver with 2,8” voice coil

• 134 dB Max SPL

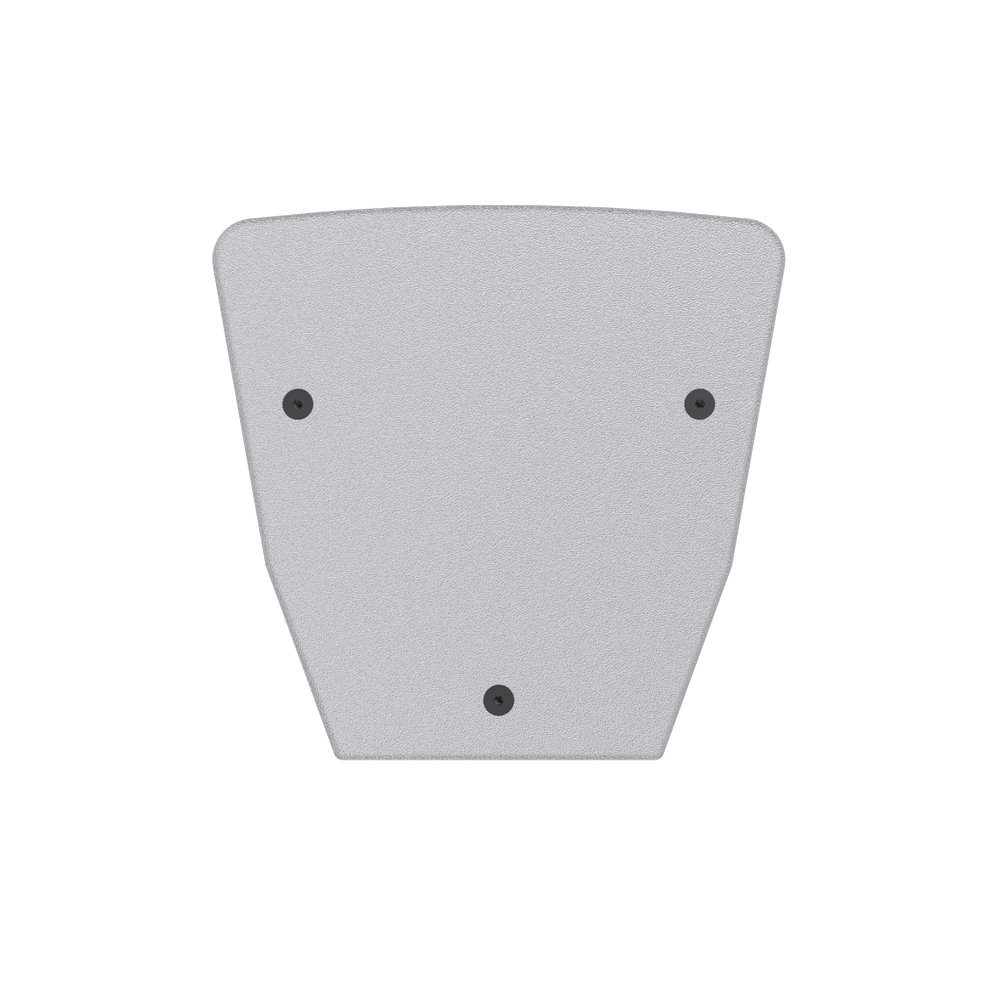

• M10 mounting points

NX 12 example sets:

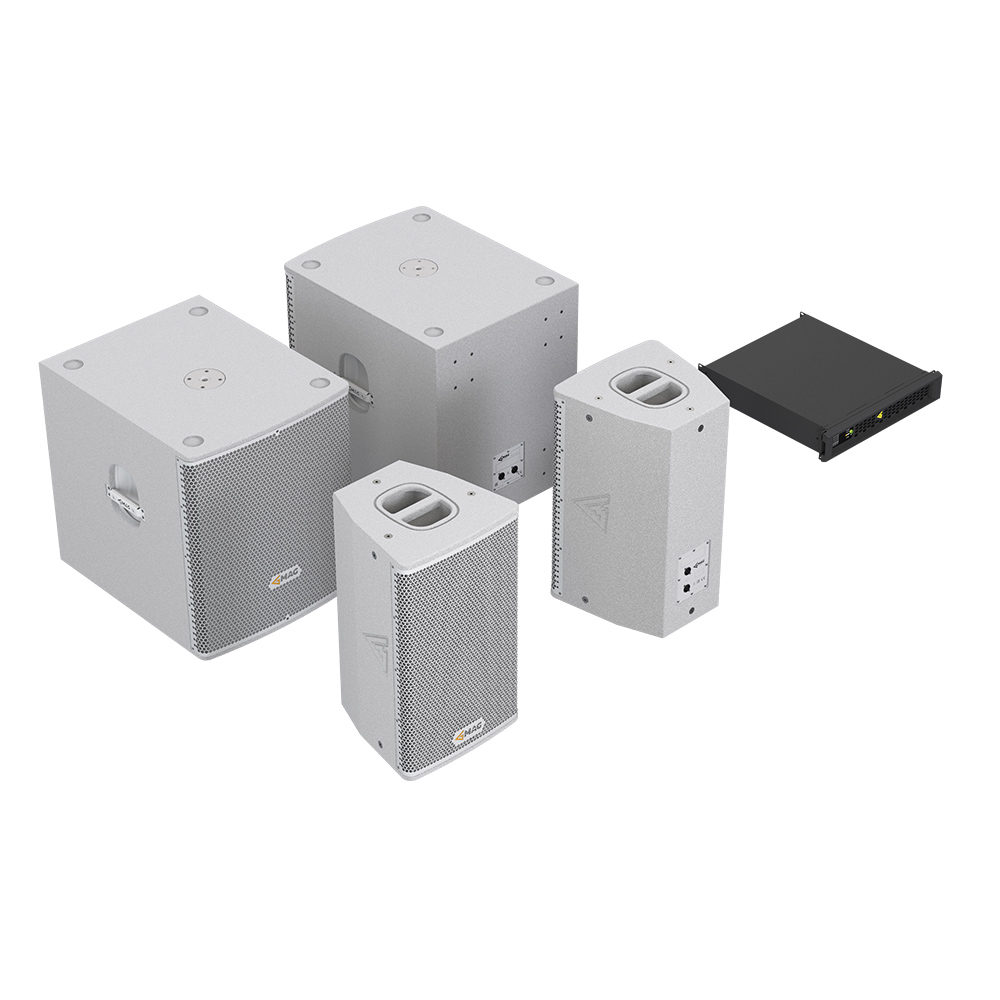

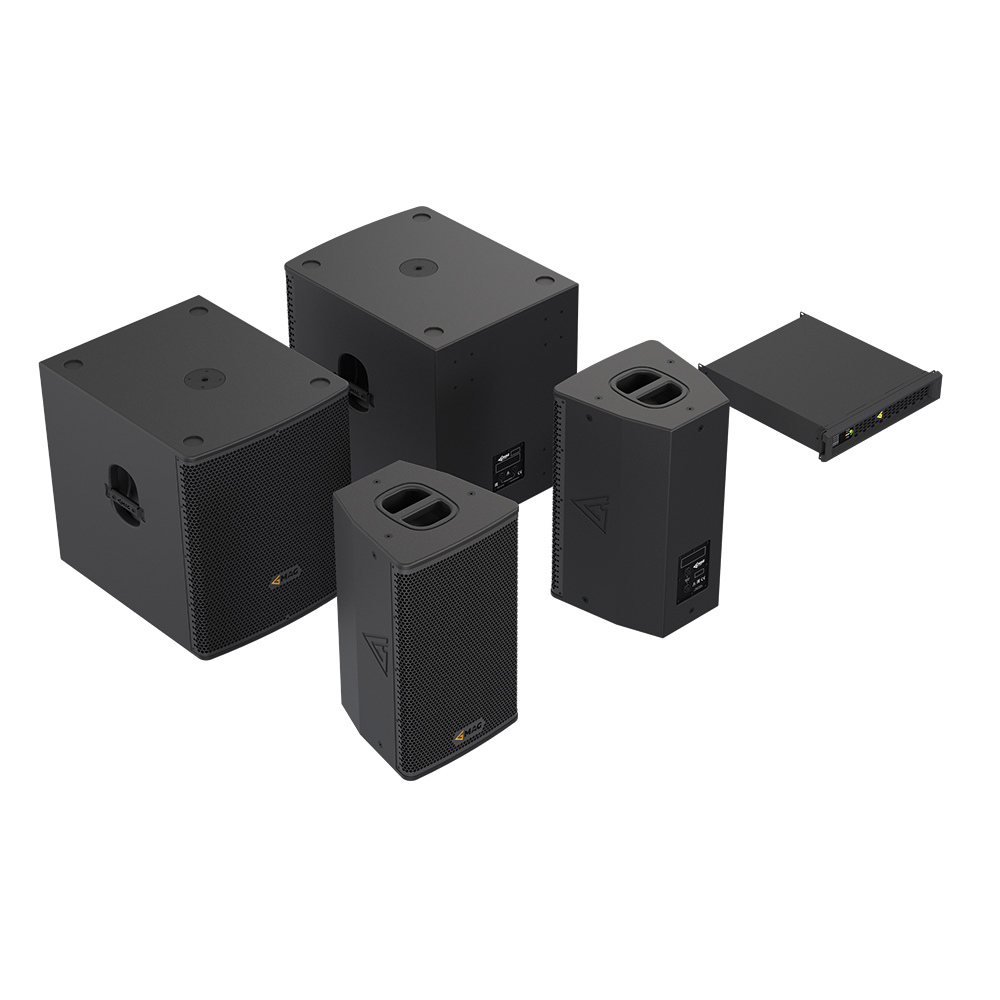

NX 12 portable set

NX 12 x 2

SUB 18-4 x 2

IQ-8000 x 1

Color: |

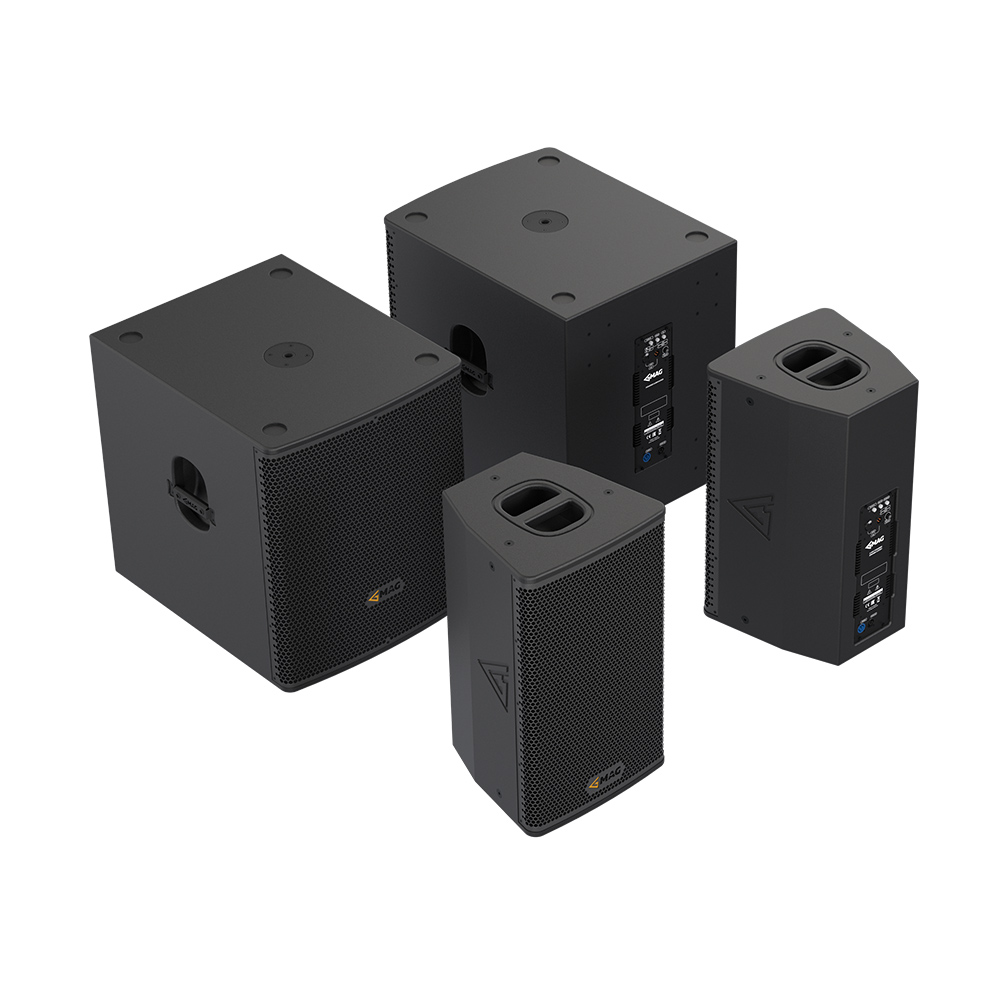

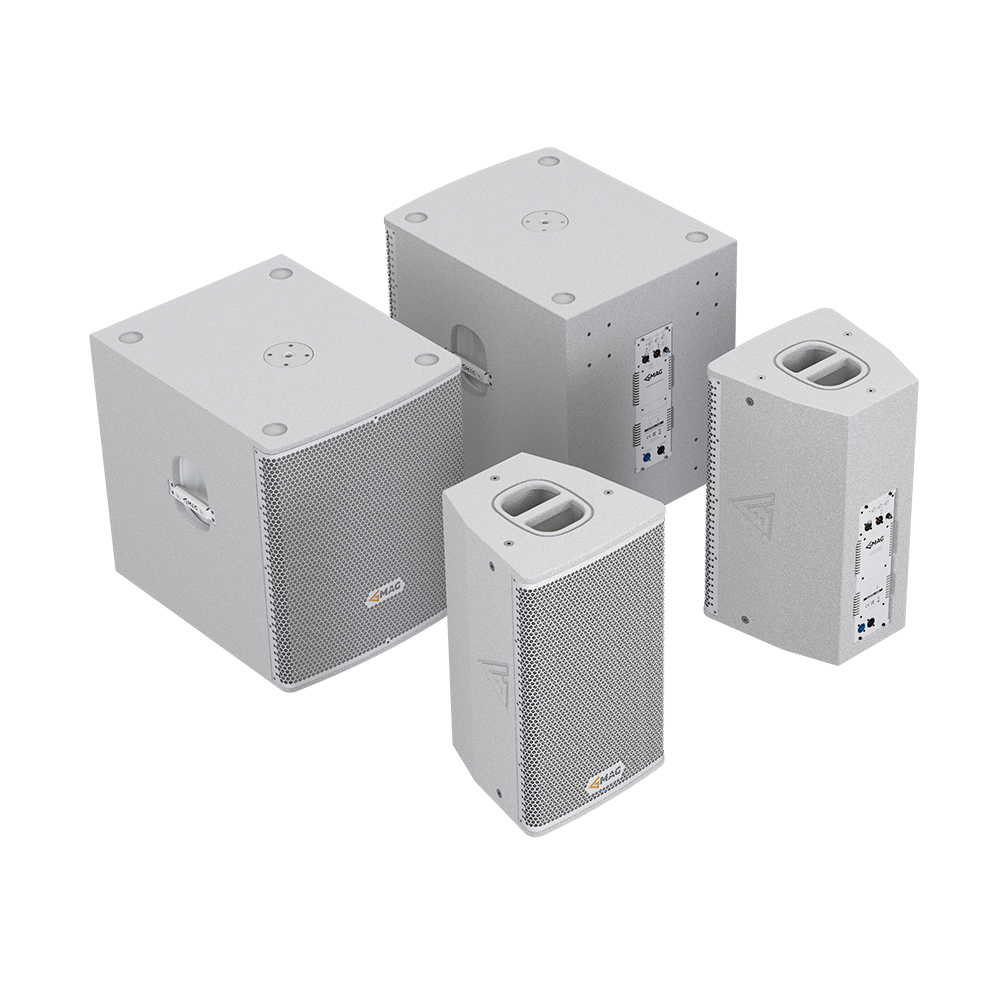

NX 12A active portable set

NX 12A x 2

SUB 18 A-4 x 2

Color: |

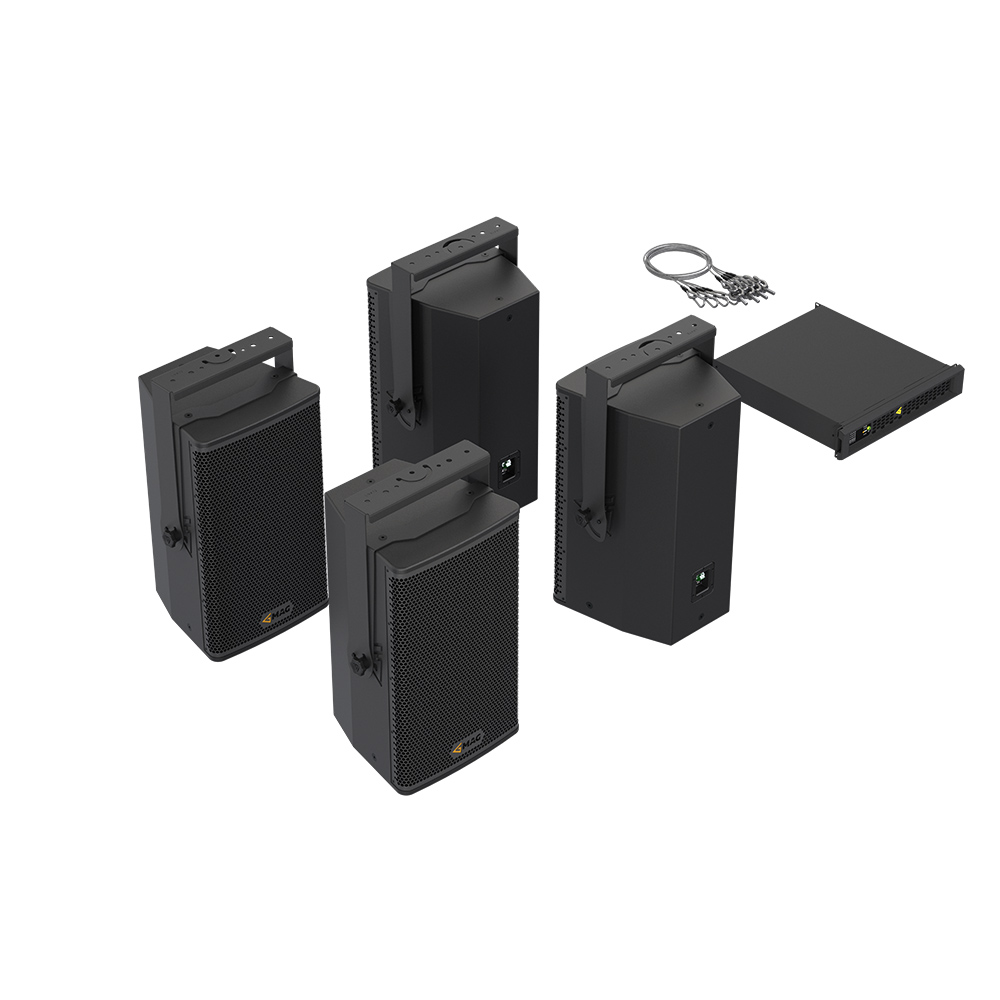

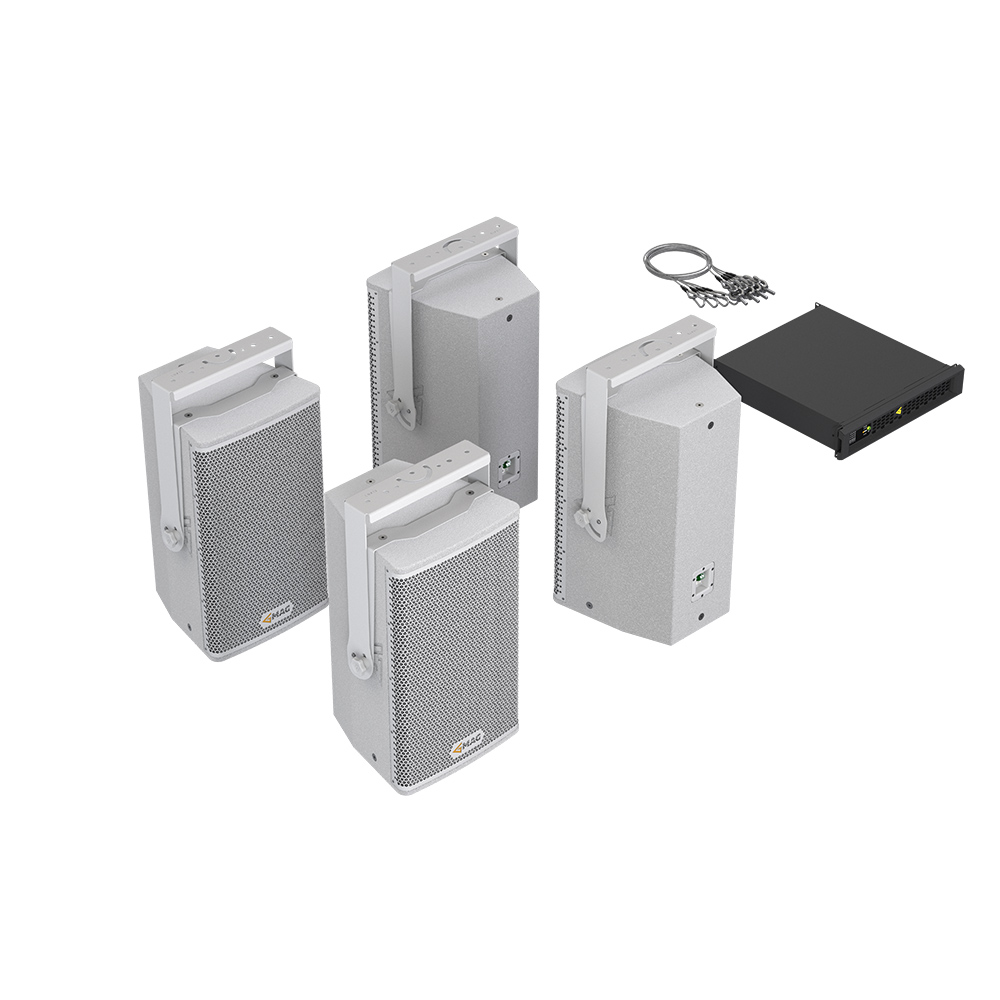

NX 12 vertical installation set

NX 12i x 4 or NX IP 12 x 4

LNX12 vertical bracket x 4

Safety cable x 4

IQ-4000 x 1

Color: |

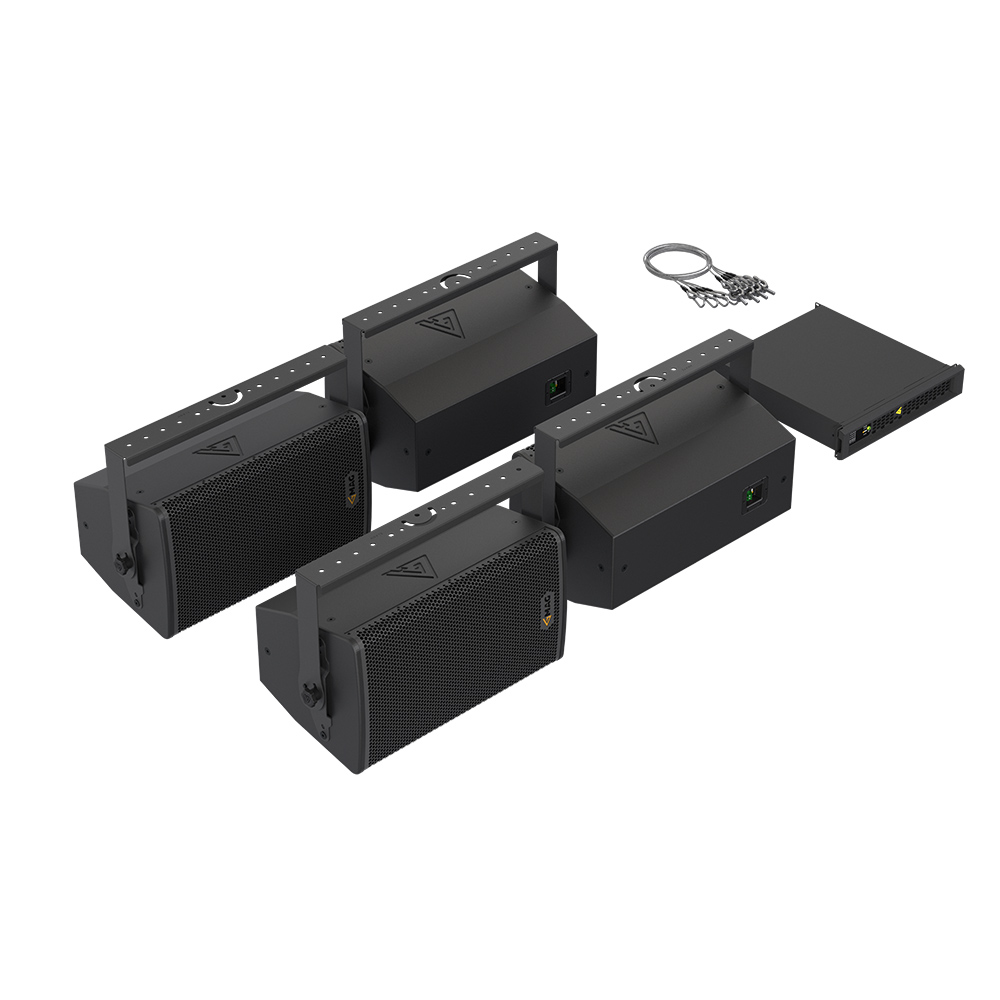

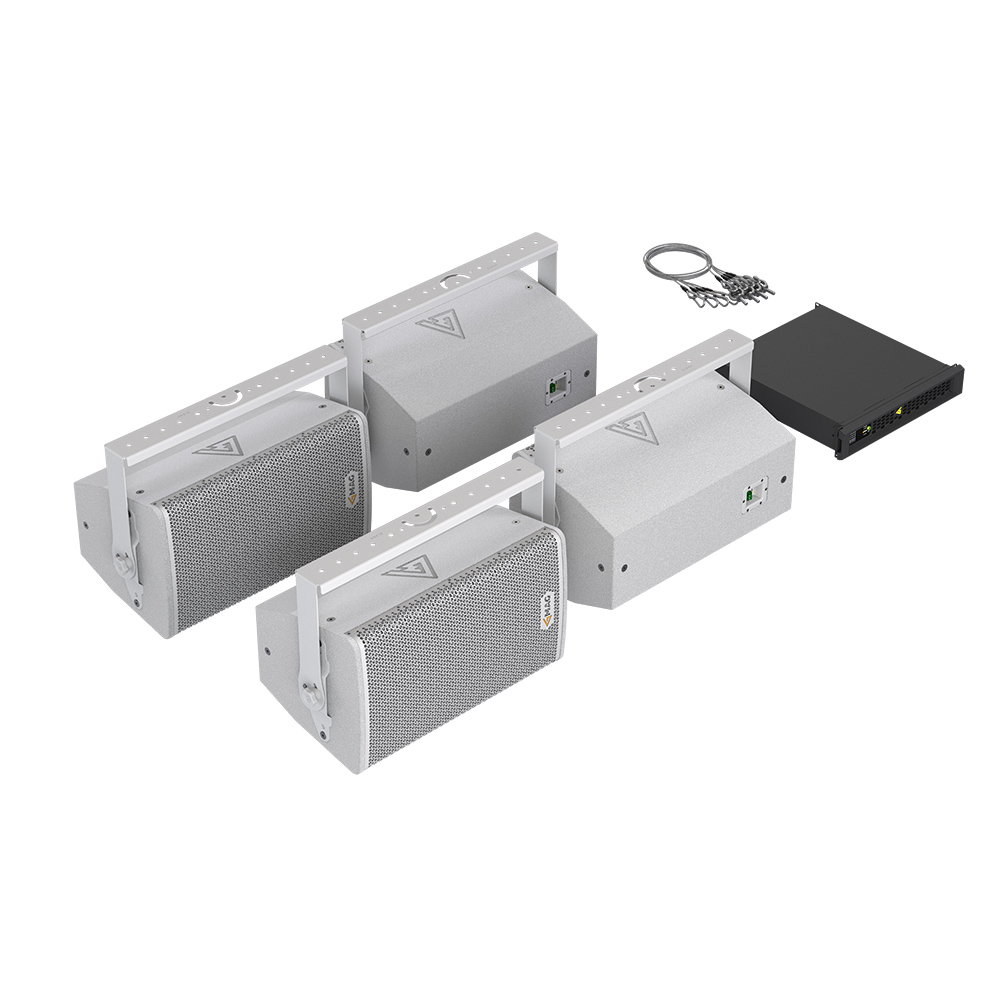

NX 12 horizontal installation set

NX 12i x 4 or NX IP 12 x 4

HNX12 horizontal bracket x 4

Safety cable x 4

IQ-4000 x 1

Color: |

Read more about the application:

MAG NX 12i in the new format of sports bar “Champion Hall”

NX series advances on the fixed installations market

NX series from MAG Audio for the Ice Rink in Kramatorsk (Ukraine)

NX series Deployed in the Netherlands’ 100-year-old Theater Podium Zuidhaege

NX series and Green Technologies: the College of Future Terra Emmen in the Netherlands

MMconcept Сhooses NX series

Main
Type Installation full-range speaker
Acoustical & Electrical data
Frequency response (-10dB) 50 - 19000 Hz
Max SPL 1 134 dB
Sensitivity (1W/1m) 98 dB
LF Driver 12”, 3" VC
HF Driver 1,5”, 2,8" VC
Nominal Coverage Angle (Horizontal × Vertical) 80 x 70 deg
Impedance 8 Ohm
Nominal power 2 500 W

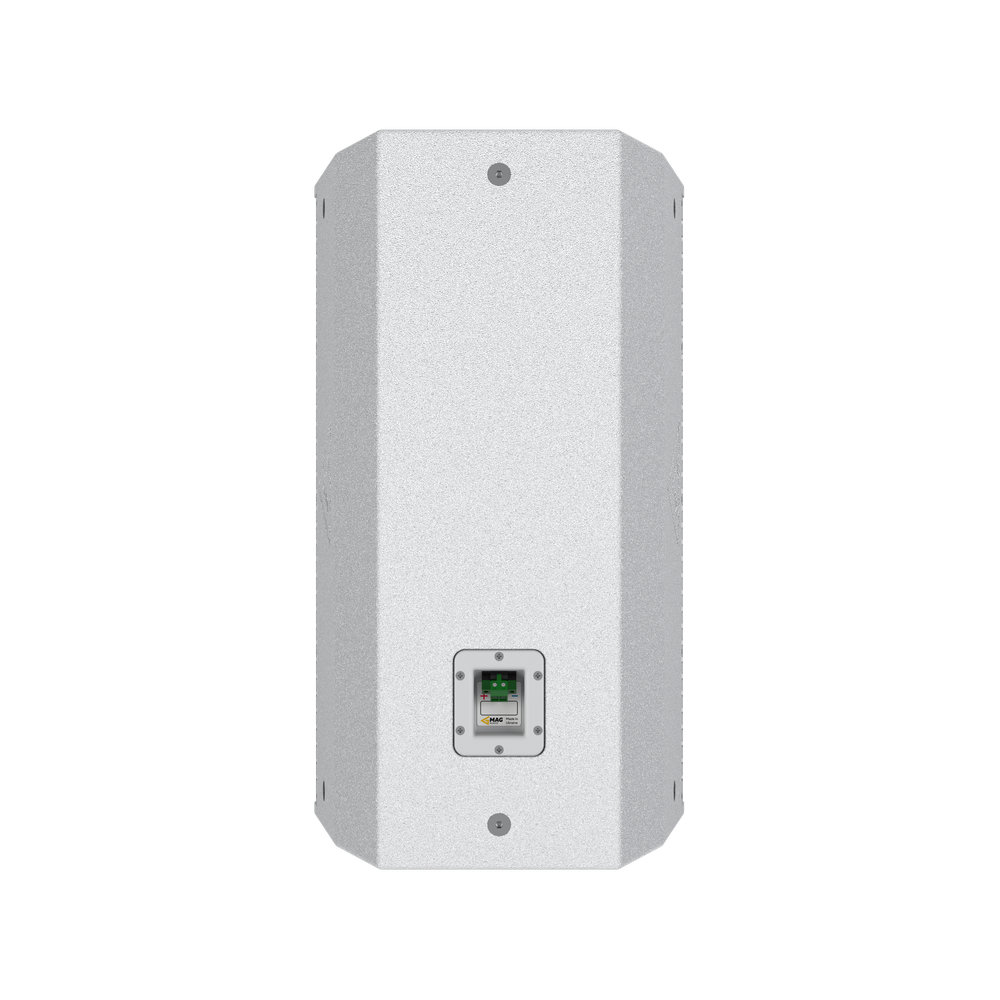

Connectors Phoenix
Connections and physical data
Dimensions (W x H x D) 379 x 650 x 367 mm
Net weight 24 kg
Shipping weight 26 kg
Mounting M10 mounting points
Enclosure material Plywood; wear resistant paint
Speaker protection Steel grill, acoustically transparent backing

1 pink noise, filtered according to AES 2 - 2012, crest factor 9 dB

2 based on transducer power measured according to AES 2 - 2012
