AIR-122 IP - Weather-resistant full-range speaker
AIR-122 IP is a Weather-resistant full-range speaker based on a 12” coaxial woofer. Compact size, light weight, and numerous mounting options make AIR-122 IP a system of high usability that achieves the most performance per the space occupied.
Product description:
Weather-resistant full-range speaker
Main features:
• 500 W nominal power
• 12” coaxial driver
• 132 dB Max SPL
• VESA 100x100, M10 mounting points

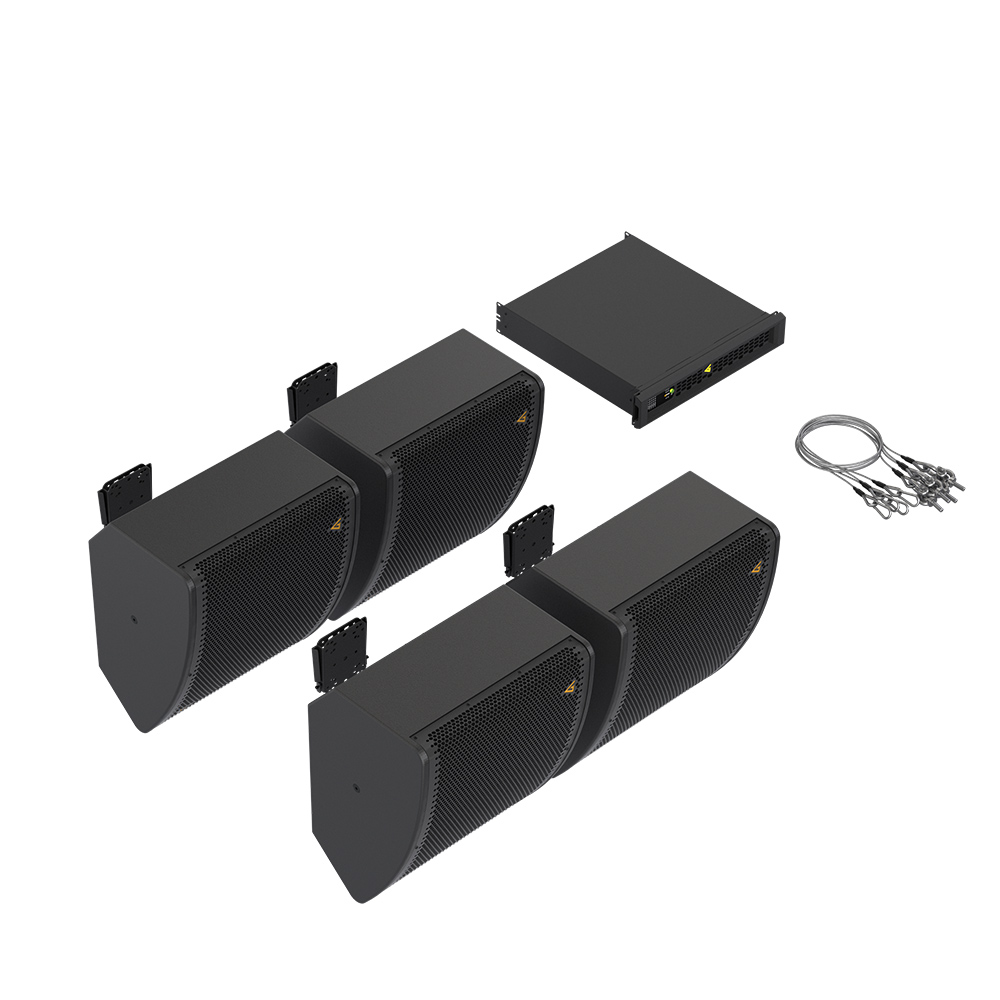

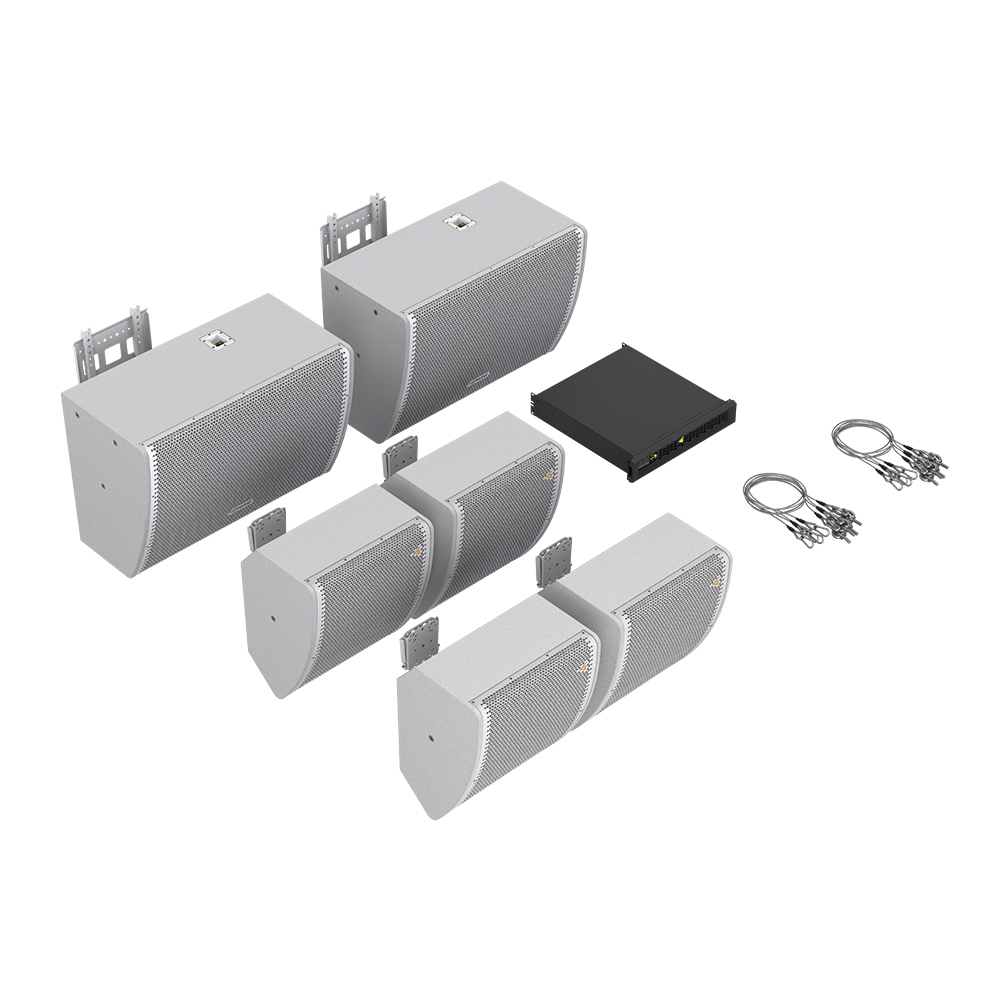

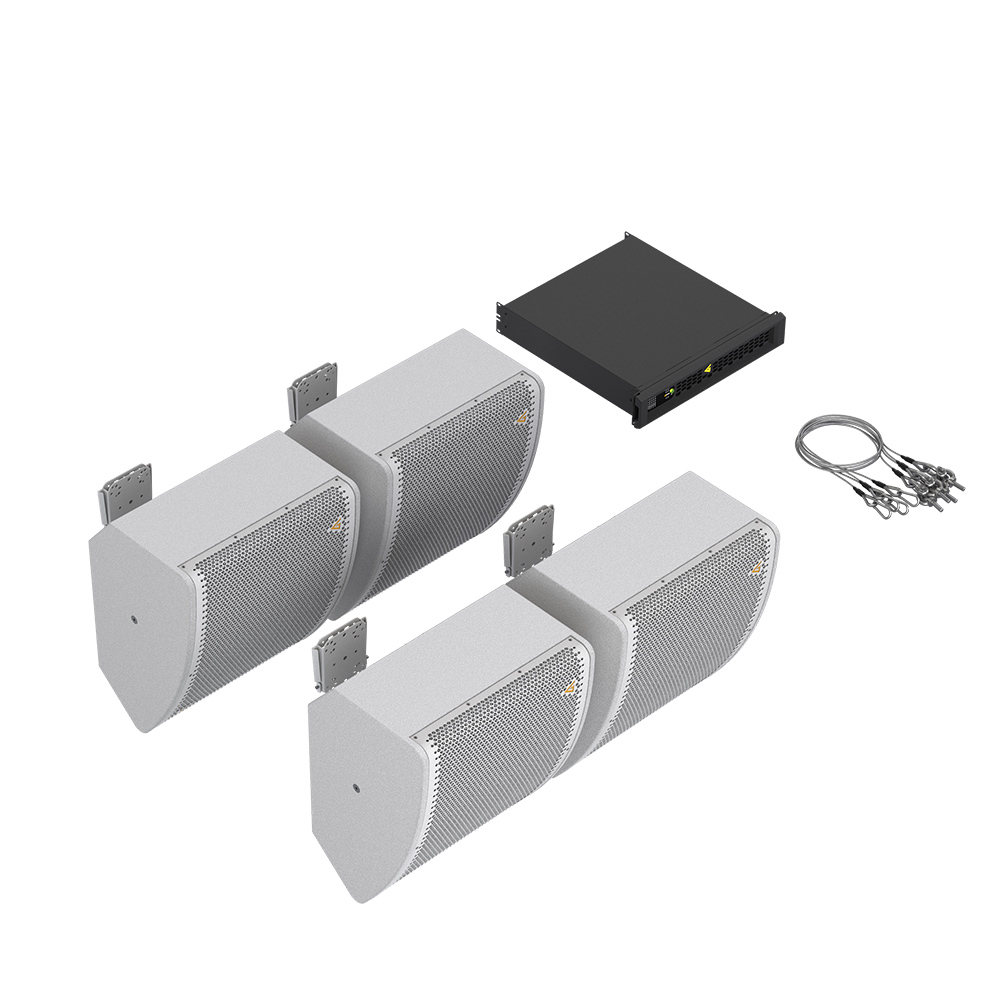

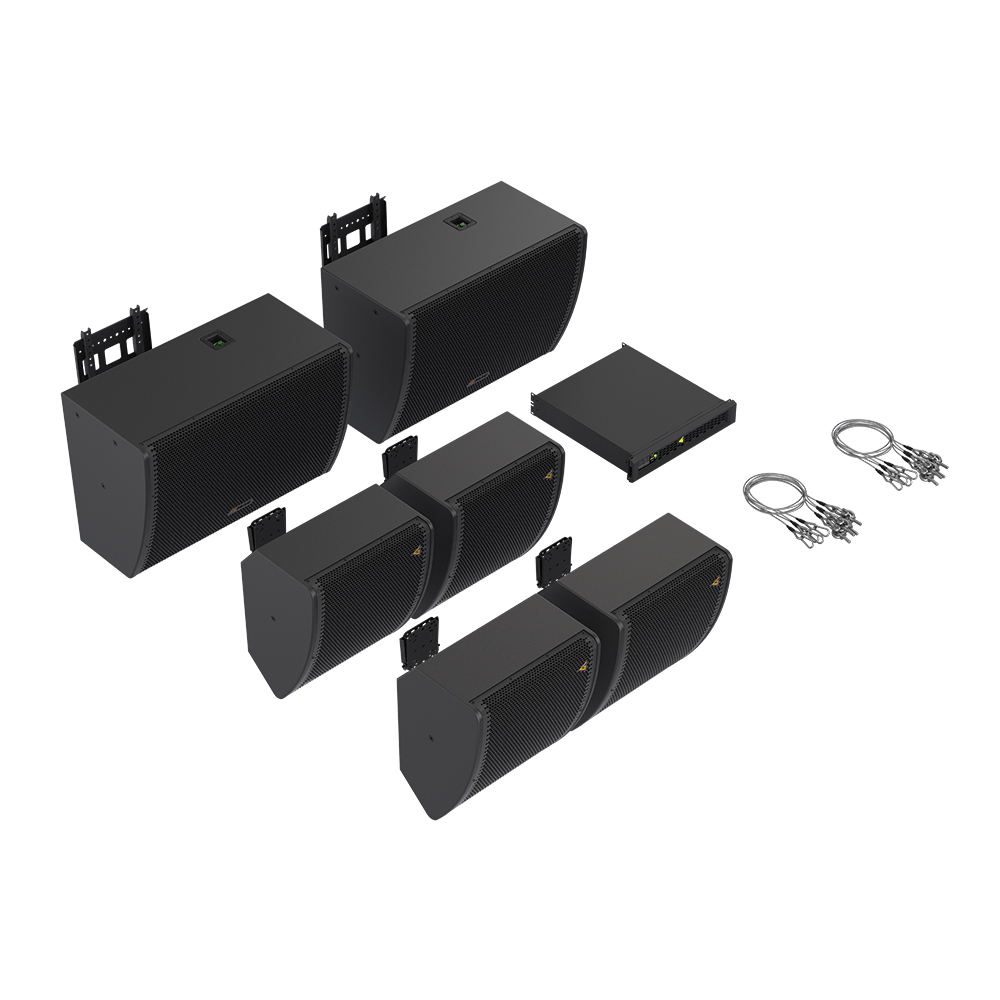

AIR-122 IP example sets:
Read more about the application:
Shevchenko HUB in Kaniv — the First Concert and Movie Complex in Ukraine
MAG Audio is looking for talent in Los Angeles with ISINA Music
When Prestige Demands Perfection: MAG Audio at Mountain Residence Bukovel
MAG conquers the 11 sports arenas of El Salvador
Comfortable sound with MAG Audio in the "Mayak" restaurant in Rivne
Reconstruction of the "Avangard" stadium in the city of Rivne
MAG Audio for the Christian Social Center "Revival"
Presentation of MAG Audio product lines at La Scene (Malmedy, Belgium)
The Neon Lights Ice Rink “Fifty ICE” // MAG AIR
Giant Water Sports Complex in Hungary Sounds with MAG AIR
Buddha-Bar Manhattan, New York: the Club Vibe from MAG Audio
Panorama M-Lounge Bar in Bukovel Upgrades with AIR series
Harmony of white AIR series and the interior of sea restaurant
| Main | |
|---|---|
| Type | Weather-resistant full-range speaker |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 55 - 18000Hz |
| Max SPL 1 | 132 dB |
| Sensitivity (1W/1m) | 96 dB |
| LF Driver | 12" coaxial |
| Nominal Coverage Angle (Horizontal × Vertical) | 80 x 80 deg |
| Impedance | 4 / 8 Ohm |
| Nominal power 2 | 500 W |
| Connectors | Phoenix |
| Connections and physical data | |
| Dimensions (W x H x D) | 470 x 554 x 344 mm |
| Net weight | 24 kg |
| Shipping weight | 27 kg |
| Mounting | VESA 100 x 100; 2 x M10 Mounting points; M10 safety point |
| Weather protection | IP 54 weather-protection |
| Enclosure material | Plywood; wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
1 pink noise, filtered according to AES 2 - 2012, crest factor 9 dB
2 based on transducer power measured according to AES 2 - 2012
