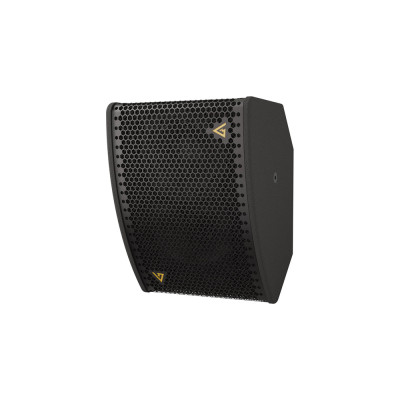

AIR-62 IP - Weather-resistant speaker

AIR-62 IP - Weather-resistant speaker
Installation solutions
High-quality installation-ready speakers
Indoor & outdoor use
Compact enclosures designed to fit into any interior
Fitting everywhere
Including versatile mounting brackets
Realibility
Long-life own designed components

AIR-62 IP is a Weather-resistant speaker with extremely compact size, compact weight and numerous mounting options. AIR-62 IP features 6” woofer with 1,75” voice coil and is availabe in 8 and 16 Ohm versions.

Product description:

Weather-resistant speaker

Main features:

• 150 W nominal power

• 6” woofer with 1,75” voice coil

• 1” HF driver with 1” voice coil

• 124 dB Max SPL

• VESA 75x75, M10 mounting points


Read more about application:

Sound of Victory: MAG AIR-62 IP at “Kolos” Stadium

AIR series in the Palace of Culture in Oleksandriya city

Panorama M-Lounge Bar in Bukovel Upgrades with AIR series

Harmony of white AIR series and the interior of sea restaurant

AIR series in Blur Coffee

Main
Type Weather-resistant speaker
Acoustical & Electrical data
Frequency response (-10dB) 90 - 18000 Hz
Max SPL 1 124 dB
Sensitivity (1W/1m) 93 dB
LF Driver 6", 1,75" VC
HF Driver 1", 1" VC
Nominal Coverage Angle (Horizontal × Vertical) 80 x 60 deg
Impedance 8 / 16 Ohm
Nominal power 2 150 W
Connections and physical data
Connectors Barrier strip / Gland nut cover plate
Dimensions (W x H x D) 270x356x233 mm
Net weight 6 kg
Shipping weight 7 kg
Mounting VESA 75x75; 2x M10 Mounting points; M10 safety point
Weather protection IP 54 weather-protection
Enclosure material Plywood; wear-resistant paint
Speaker protection Steel grill, acoustically transparent backing

1 pink noise, filtered according to AES 2 - 2012, crest factor 9 dB

2 based on transducer power measured according to AES 2 - 2012
