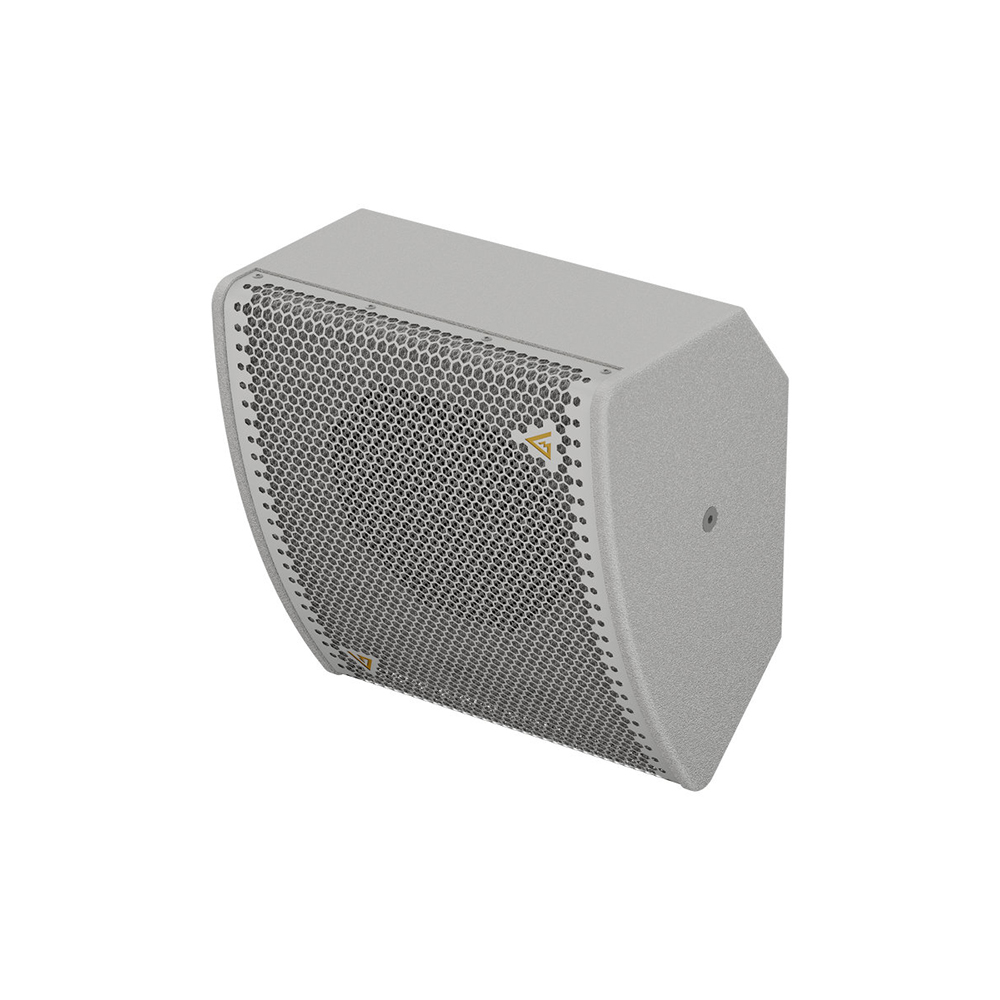

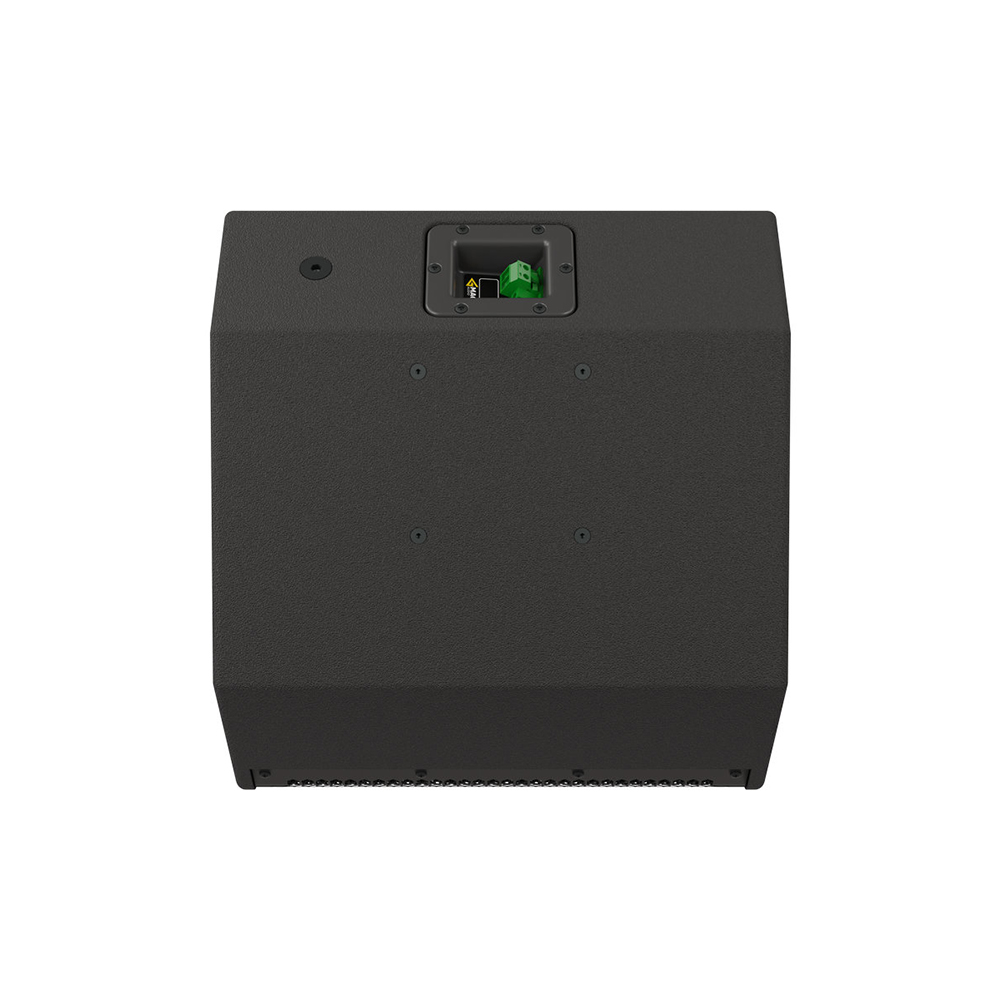

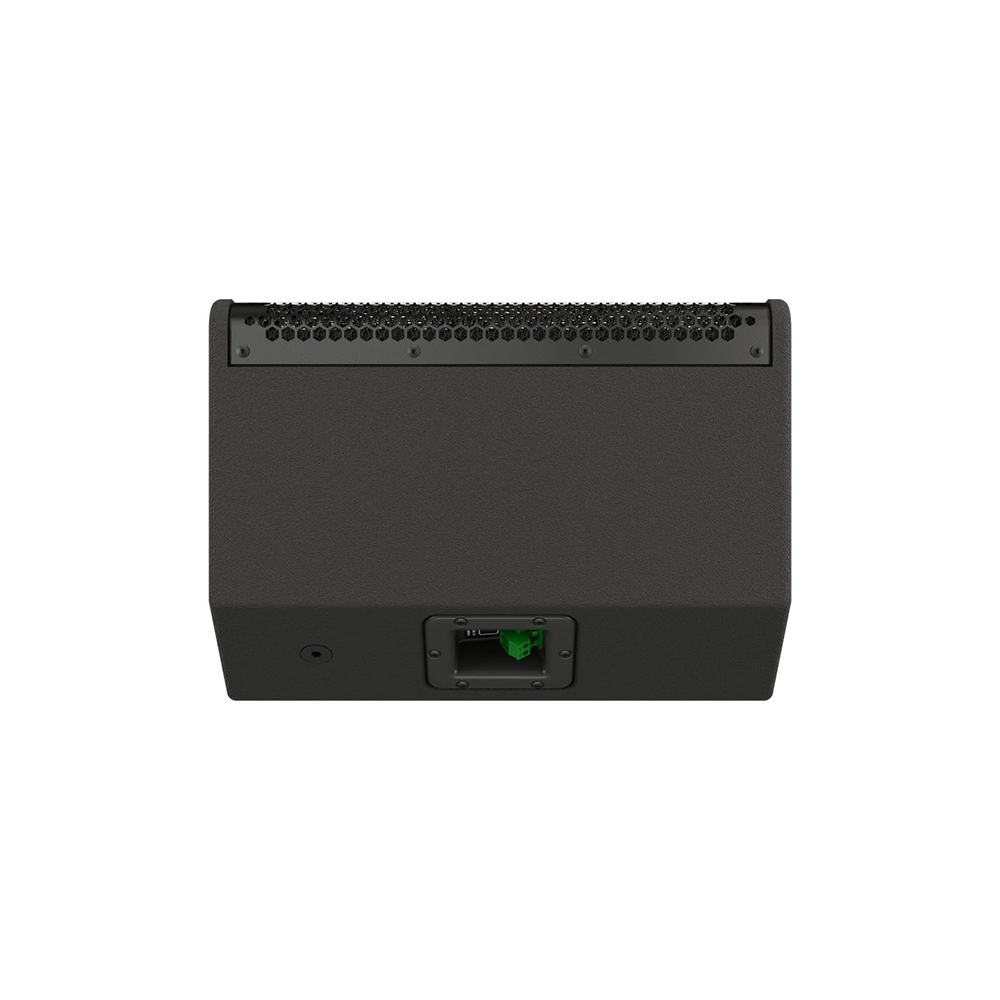

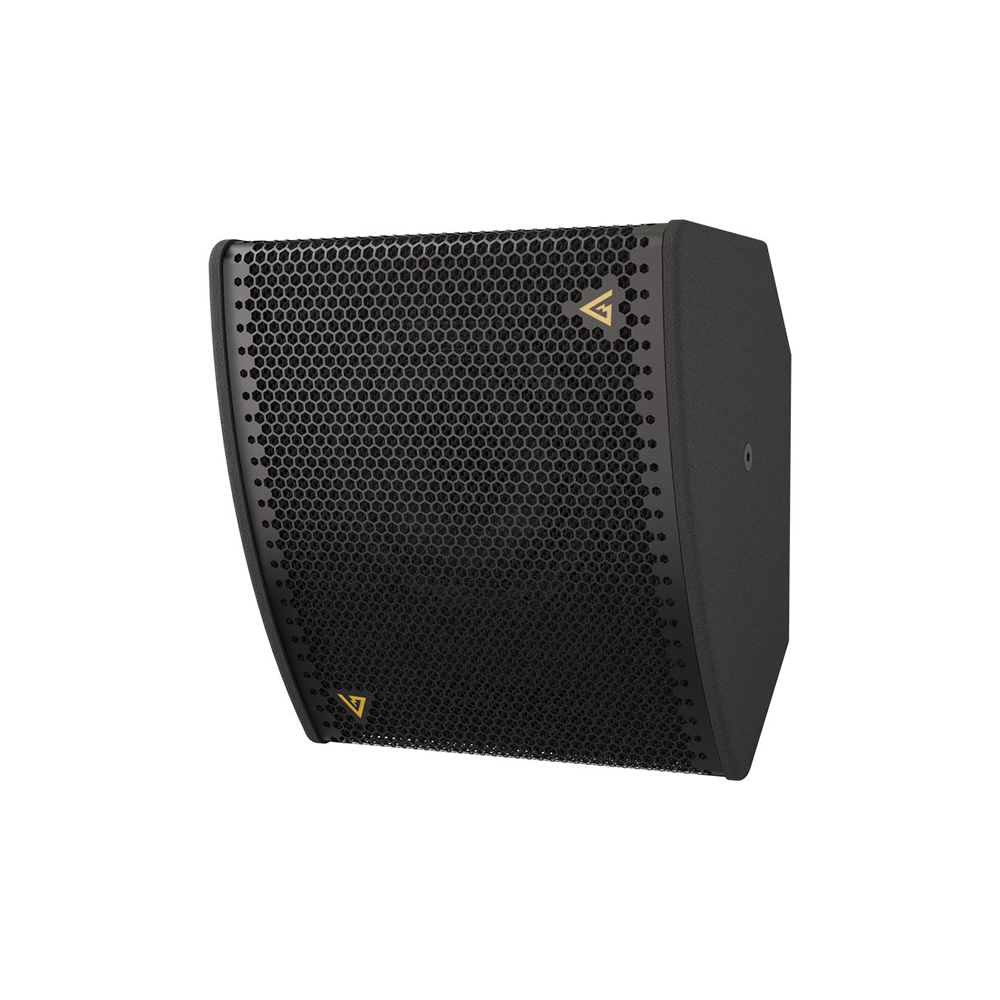

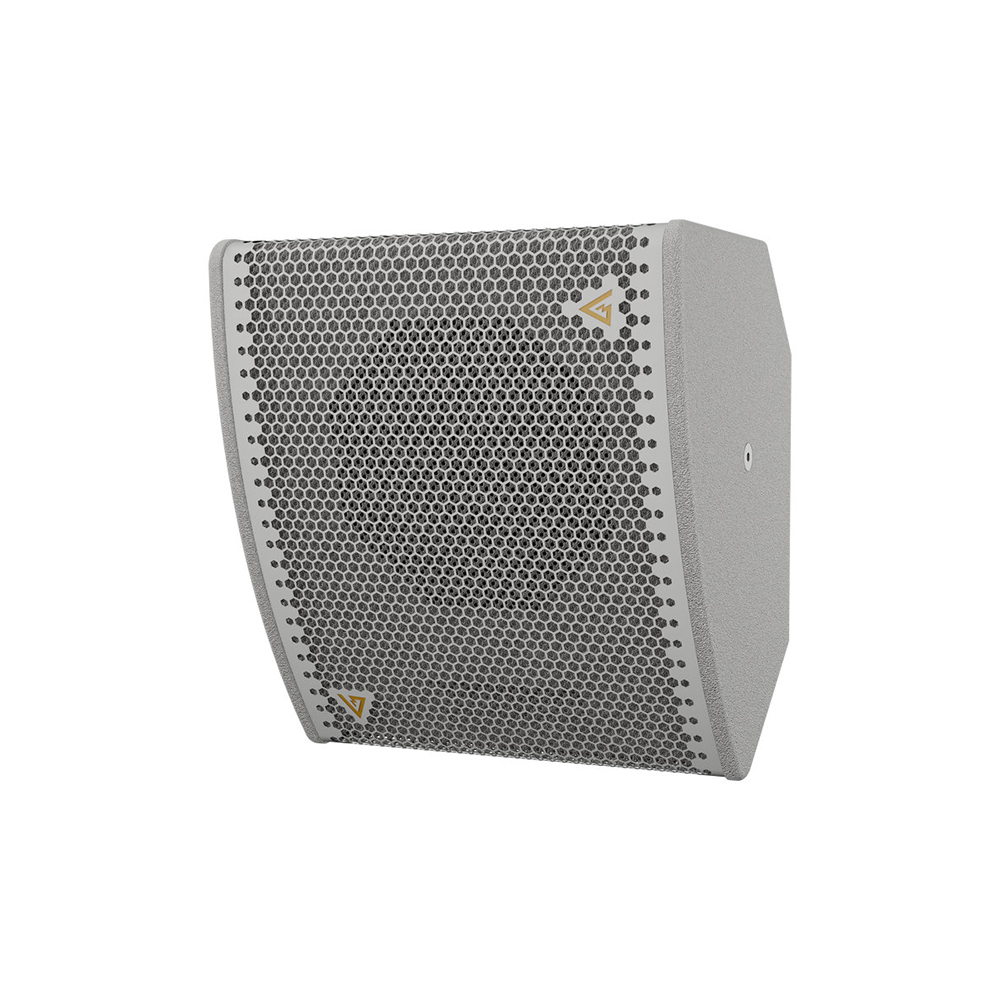

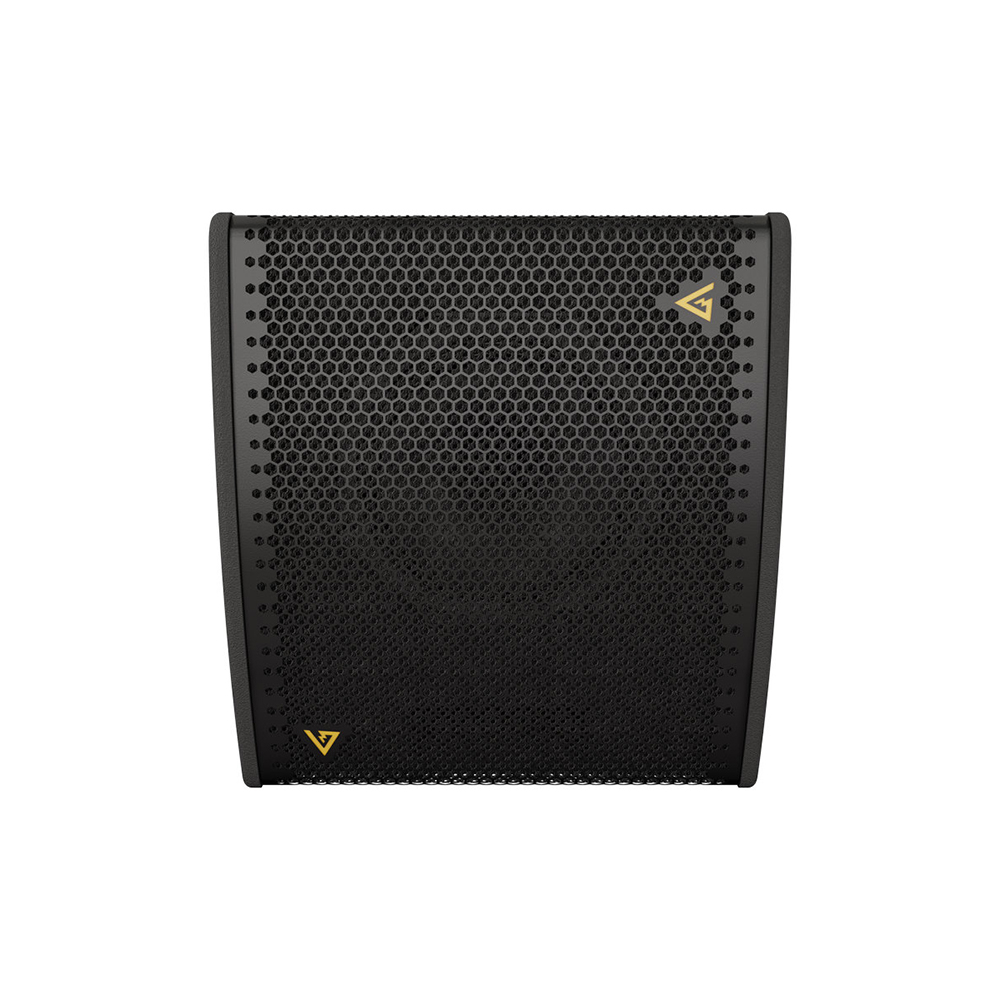

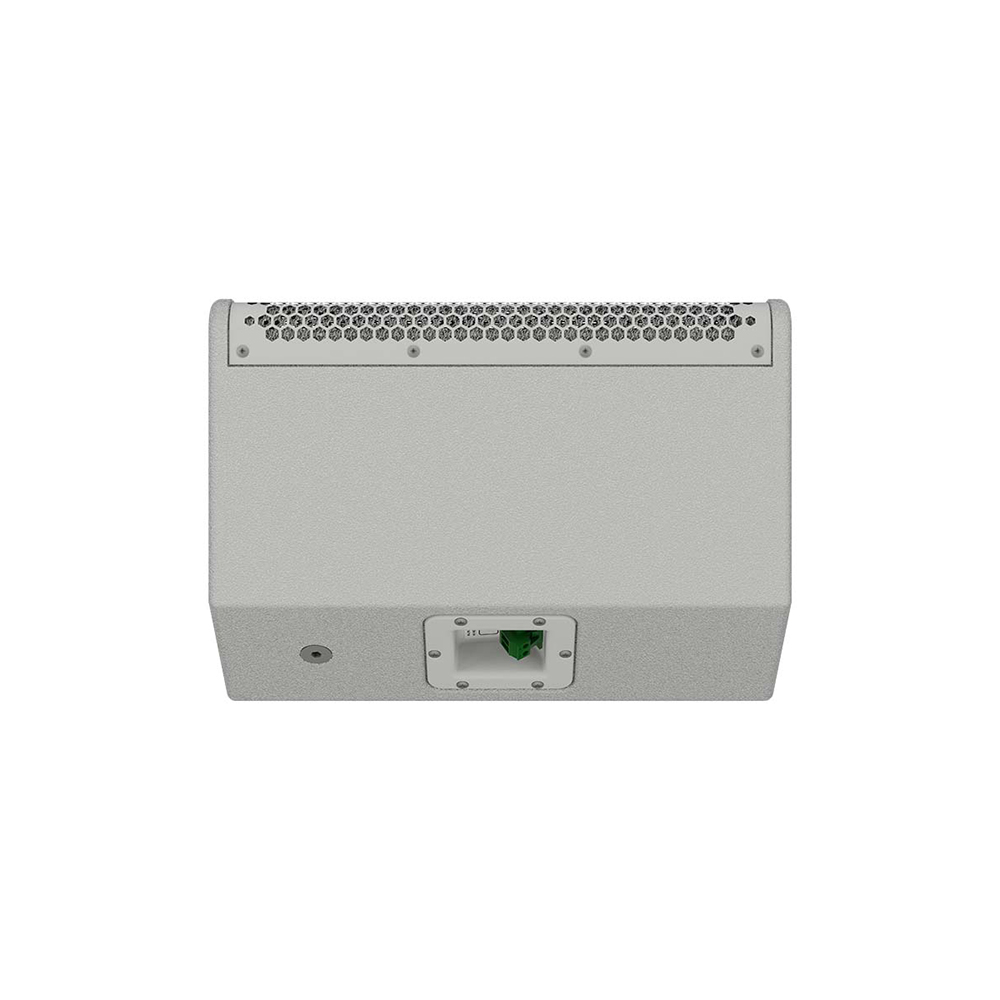

AIR-82 - Installation speaker
The passive installation speaker, AIR-82, is extremely compact, featuring an 8” coaxial woofer. The model has numerous mounting options, providing usability for each and every project.
Product description:
Іnstallation speaker
Main features:
• 250 W nominal power
• 8” coaxial driver
• 127 dB Max SPL
• VESA 75x75, M10 mounting points
AIR-82 example sets:
Read more about the application:
Shevchenko HUB in Kaniv — the First Concert and Movie Complex in Ukraine
MAG Audio is looking for talent in Los Angeles with ISINA Music
When Prestige Demands Perfection: MAG Audio at Mountain Residence Bukovel
MAG conquers the 11 sports arenas of El Salvador
Comfortable sound with MAG Audio in the "Mayak" restaurant in Rivne
Reconstruction of the "Avangard" stadium in the city of Rivne
MAG Audio for the Christian Social Center "Revival"
Presentation of MAG Audio product lines at La Scene (Malmedy, Belgium)
The Neon Lights Ice Rink “Fifty ICE” // MAG AIR
Giant Water Sports Complex in Hungary Sounds with MAG AIR
Buddha-Bar Manhattan, New York: the Club Vibe from MAG Audio
Panorama M-Lounge Bar in Bukovel Upgrades with AIR series
Harmony of white AIR series and the interior of sea restaurant
| Main | |
|---|---|
| Type | Passive installation speaker |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 80 - 18000 Hz |
| Max SPL 1 | 127 dB |
| Sensitivity (1W/1m) | 94 dB |
| LF Driver | 8" coaxial |
| Nominal Coverage Angle (Horizontal × Vertical) | 90 x 90 deg |
| Impedance | 4 / 8 / 16 Ohm |
| Nominal power 2 | 250 W |
| Connectors | Phoenix |
| Connections and physical data | |
| Dimensions (W x H x D) | 354 x 383 x 254 mm |
| Net weight | 9,5 kg |
| Shipping weight | 10,5 kg |
| Mounting | VESA 75 x 75; 2 x M10 Mounting points; M10 safety point |
| Enclosure material | Plywood; wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
1 pink noise, filtered according to AES 2 - 2012, crest factor 9 dB
2 based on transducer power measured according to AES 2 - 2012
