NX 15 IP - Weather-resistant installation speaker

NX 15 IP - Weather-resistant installation speaker
Designed to deliver
High-performance in a compact size
Variety
Passive and powered versions available
Transportability
Lightweight cabinets perfect for mobile professionals
Fitting everywhere
Mounting options including Flytrack and pole mounting
Indoor & outdoor use
Compact enclosures designed to fit into any interior

Passive installation speaker, NX 15 IP is based on 15’’+1,5’’ drivers and has been purpose-designed for installations. With well-thought-out construction, light weight and compact size, it provides considerable power and smooth sonic performance, fitting into any and all installations.

Product description:

Weather-resistant installation speaker

Main features:

• 500 W nominal power

• 15” woofer with 3” voice coil

• 1,5” HF driver with 2,8” voice coil

• 134,5 dB Max SPL

• M10 mounting points

NX 15 example sets:

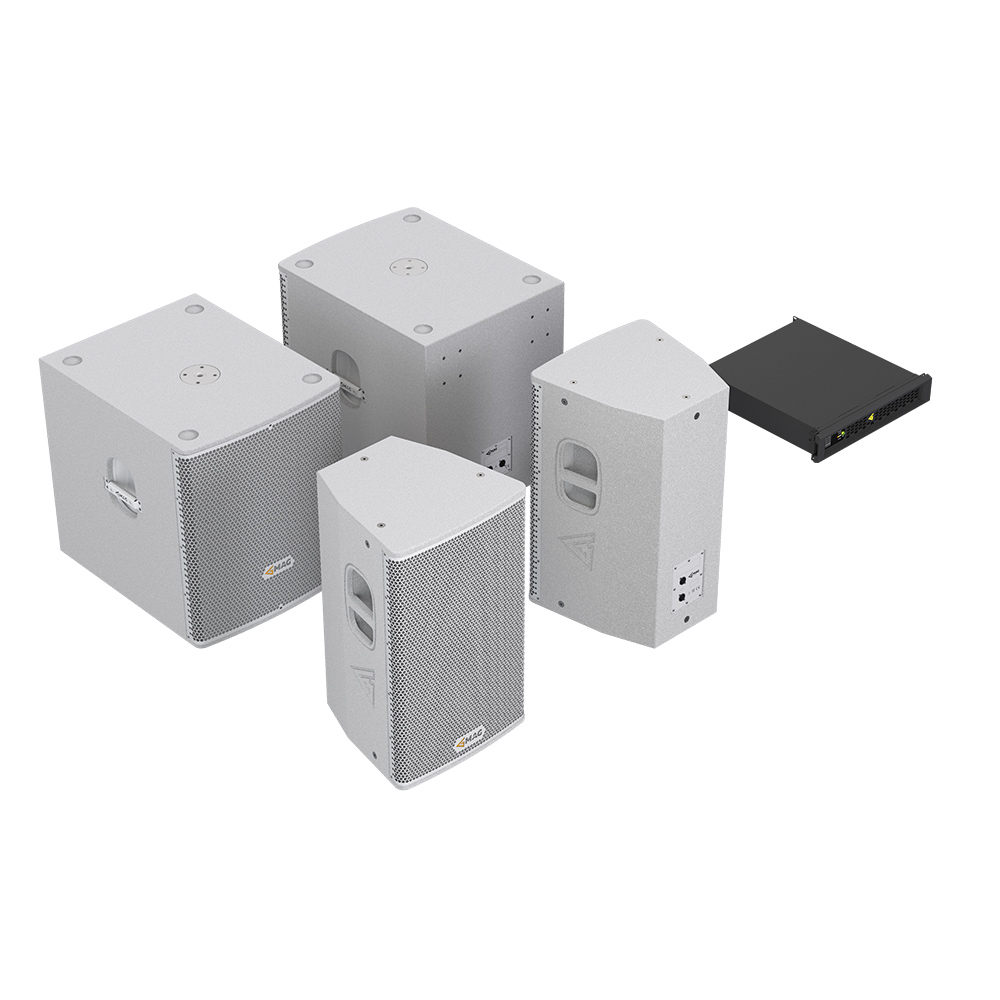

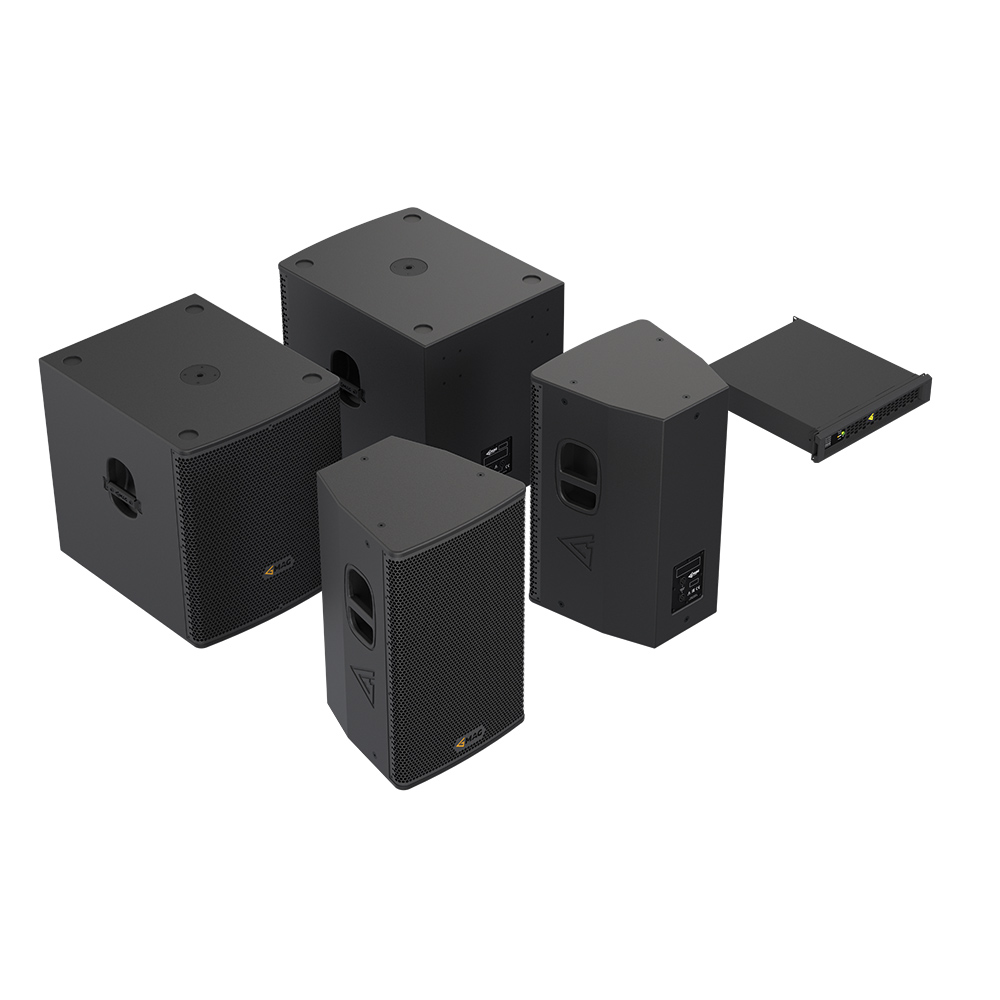

NX 15 portable set

NX 15 x 2

SUB 18-4 x 2

IQ-8000 x 1

Color: |

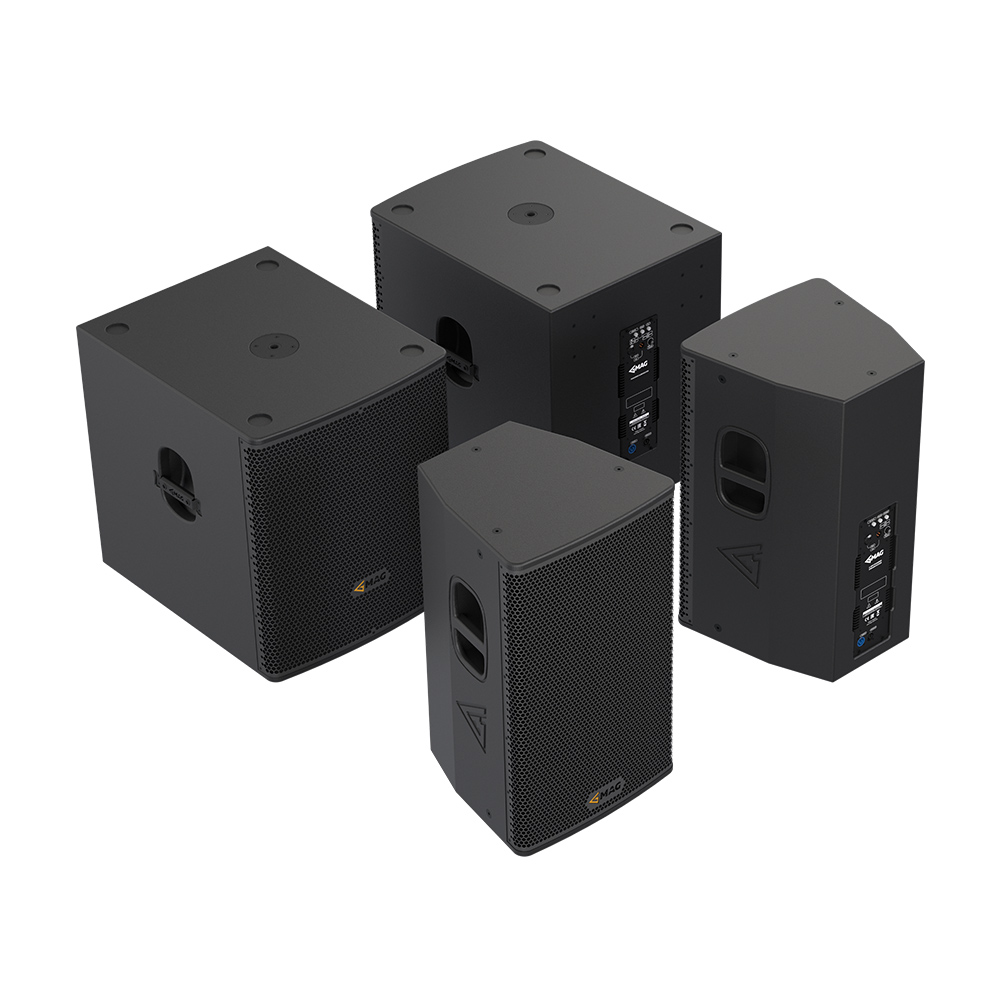

NX 15A active portable set

NX 15A x 2

SUB 18 A-4 x 2

Color: |

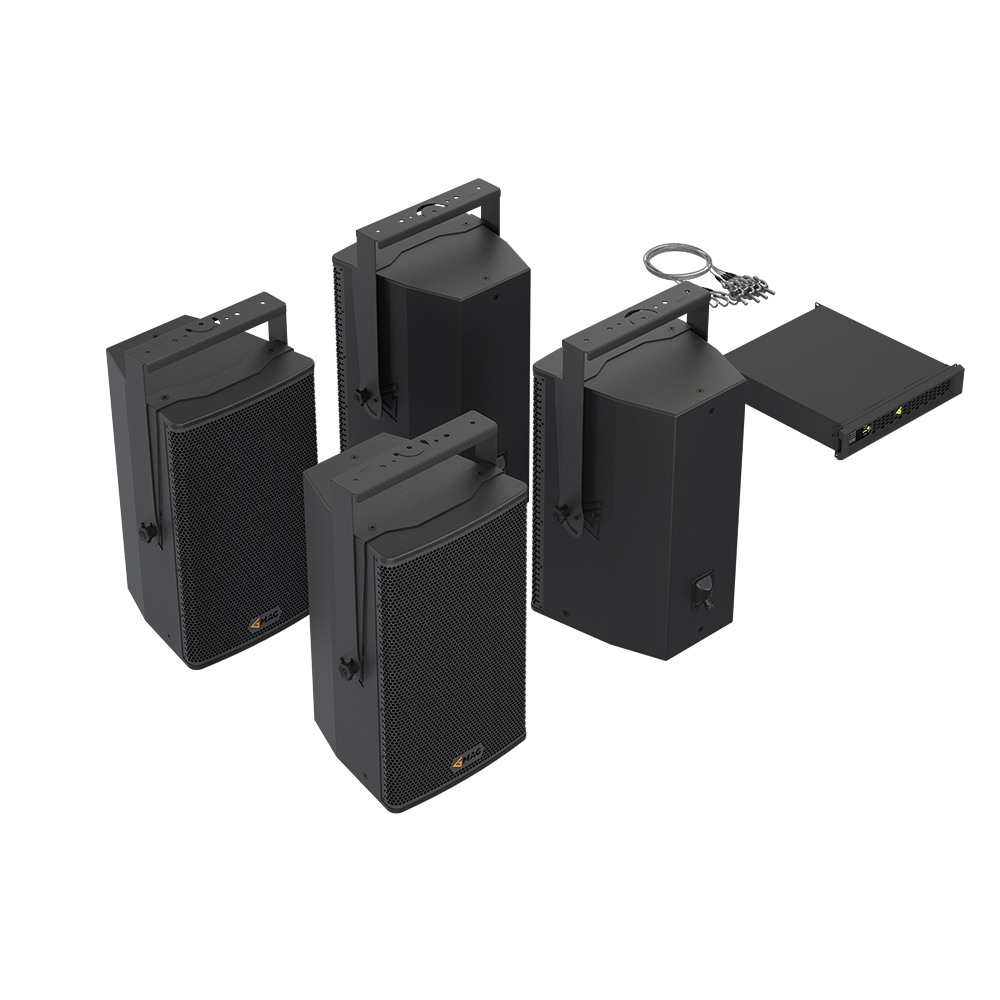

NX 15 vertical installation set

NX 15i x 4 or NX IP 15 x 4

LNX15 vertical bracket x 4

Safety cable x 4

IQ-4000 x 1

Color: |

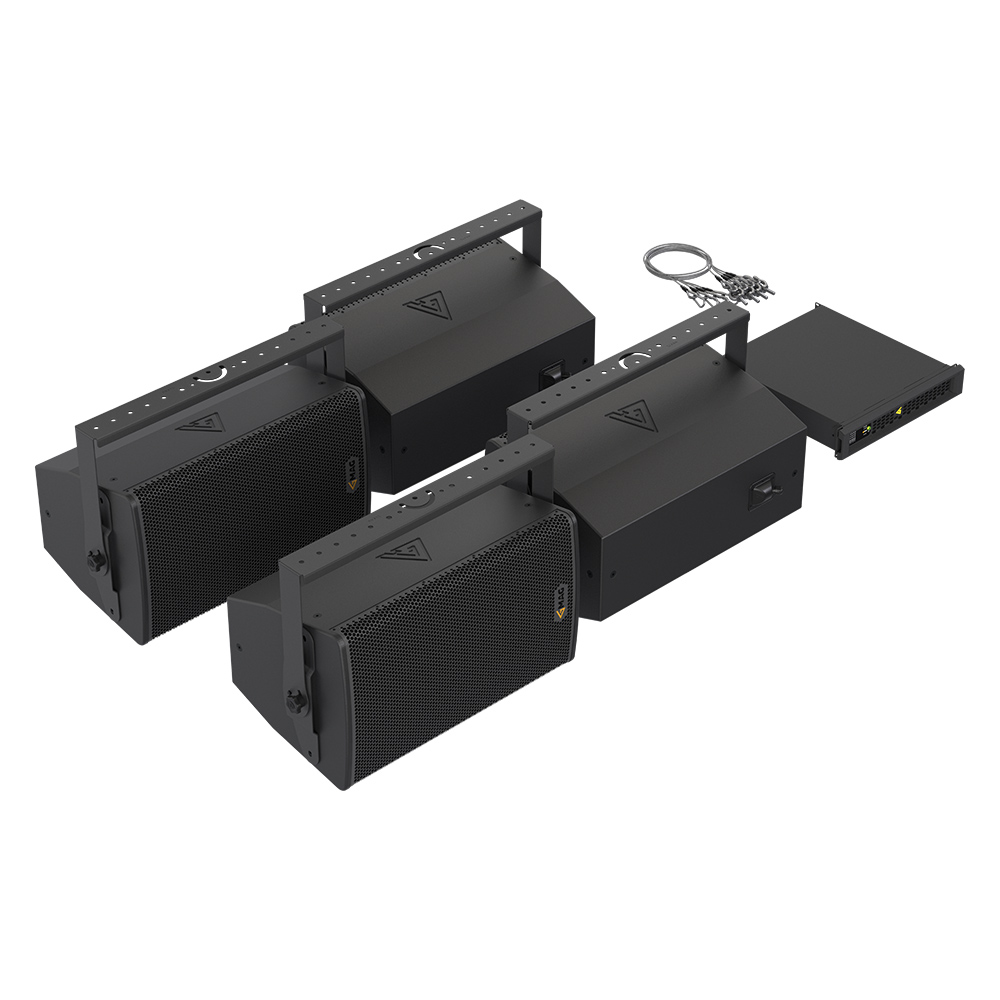

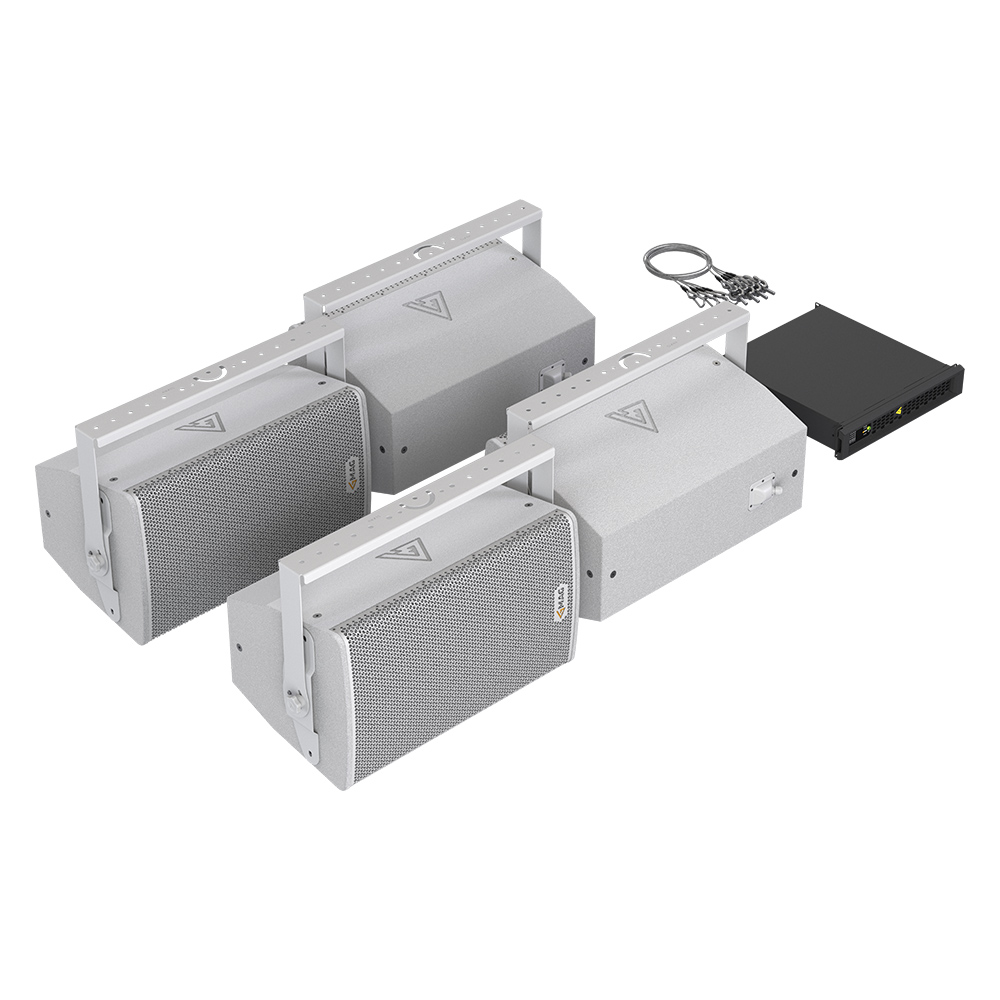

NX 15 horizontal installation set

NX 15i x 4 or NX IP 15 x 4

HNX15 horizontal bracket x 4

Safety cable x 4

IQ-4000 x 1

Color: |

Read more about application:

NX 15 IP advances on the fixed installations market

Weather-Resistant NX 15 IP from MAG Audio for the Ice Rink in Kramatorsk (Ukraine)

NX series Loudspeakers Deployed in the Netherlands’ 100-year-old Theater Podium Zuidhaege

NX series and Green Technologies: the College of Future Terra Emmen in the Netherlands

MMconcept Сhooses NX series

Main
Type Weather-resistant installation speaker
Acoustical & Electrical data
Frequency response (-10dB) 45 - 19000 Hz
Max SPL 1 134,5 dB
Sensitivity (1W/1m) 98,5 dB
LF Driver 15”, 3" VC
HF Driver 1,5”, 2,8" VC
Nominal Coverage Angle (Horizontal × Vertical) 80 x 70 deg
Impedance 8 Ohm
Nominal power 2 500 W
Connectors Phoenix
Connections and physical data
Dimensions (W x H x D) 436x730x423 mm
Net weight 28 kg
Shipping weight 30 kg
Mounting M10 mounting points
Weather protection IP54 protection
Enclosure material Plywood; wear resistant paint
Speaker protection Steel grill, acoustically transparent backing

1 pink noise, filtered according to AES 2 - 2012, crest factor 9 dB

2 based on transducer power measured according to AES 2 - 2012
